Product Overview

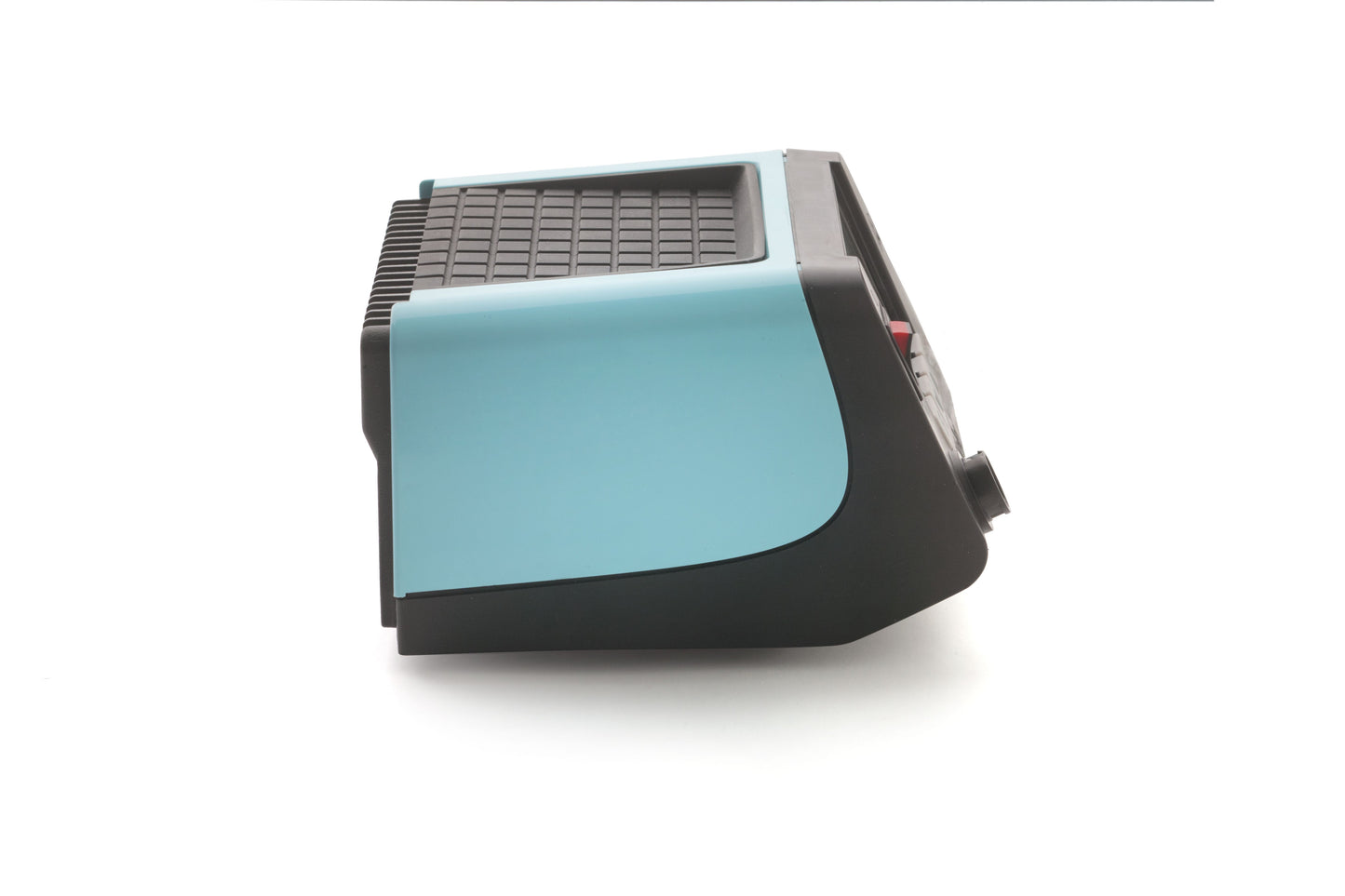

This 1-channel power unit, WT1H 230V from WELLER (Item No: T0053435699N), is a 150 W power supply designed for 230 V (50 Hz) operation and connection of WT-tip tools. The unit comes with a graphic backlit LC display and is ESD-safe. A datasheet and user manual are available on the Weller product page for further documentation.Features and Operation
Technical and functional elements highlighted by the manufacturer include a clear menu structure for intuitive operation, the ability to stack units for reduced space requirements, and storage options in the lid. The unit has functions such as OFF-time, process window, locking function, and offset. The front has an equipotential-bonding contact via a 3.5 mm pawl-socket.Documentation: See datasheet from the manufacturer
Specifications
- Product Name: WT1H 230V (Item No: T0053435699N)
- Manufacturer: WELLER
- Number of Channels: 1
- Power: 150 W
- Mains Voltage: 230 V (50 Hz)
- Tip Type: WT
- Temperature Range: adjustable from 50 °C to 550 °C (150 °F - 999 °F indicated)
- Temperature Accuracy: ±9 °C (±17 °F)
- Temperature Stability: ±2 °C (±4 °F)
- ESD-safe: Yes
- Equipotential bonding: Via 3.5 mm pawl-socket on front
- Interface: One switching output
- Dimensions (L x W x H): 149.0 x 138.0 x 101.0 mm
- Height: 101 mm
- Length: 149 mm
- Weight (catalogue): 3.00 kg
- Product Family: WT Line Soldering Stations
Source: Weller product information and datasheet.
Content generated using AI – subject to errors.
Contact HIN for further product information.
