Stäubli 55.3220-20

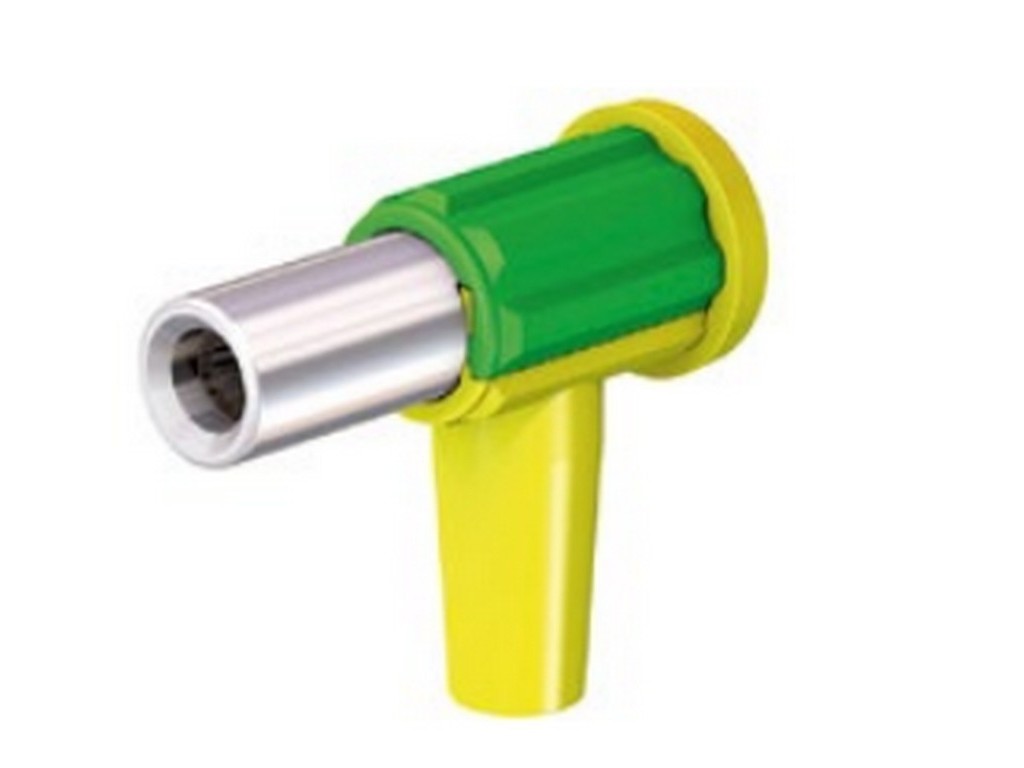

The Stäubli 55.3220-20 is a right-angled socket for self-assembly of equipotential bonding leads. It is used when a conductor needs to be assembled into a compact and secure connection, and where correct assembly and a good contact surface are required.
It is designed for a 4.0 mm² conductor and a maximum outer diameter of Ø 5.1 mm. The construction itself is made for professional assembly: the socket housing is made of nickel-plated brass, the contact is a MULTILAM contact made of gold-plated, hard-drawn copper alloy, and it is tightened with a screw connection. The insulation material is PA (polyamide), and the color code is 20.
In practice, it is a spare part and assembly component chosen when the connection needs to be made correctly from the start. It is supplied as a self-assembly part, so installation must be performed by professionals and according to the indicated assembly steps. It is also important that the connection is not interrupted under load and that it is visually inspected for damage, especially to the insulation, before use.
See data sheet from the manufacturer
Typical applications
Used for self-assembly of equipotential bonding leads in technical installations where a compact and controlled plug connection is required.
Specifications
- MPN: 55.3220-20
- Type: POAG-KBT6-EC/4
- Design: right-angled socket for self-assembly
- Application: equipotential bonding leads
- Conductor cross-section: 4.0 mm²
- Max. outer diameter: Ø 5.1 mm
- Material, socket: nickel-plated brass
- Contact: MULTILAM in gold-plated, hard-drawn copper alloy
- Connection: screw connection
- Insulation material: PA (polyamide)
- Color code: 20
