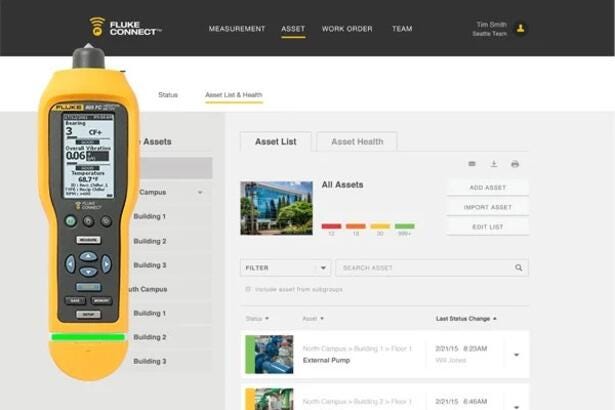

Fluke 805 FC vibration meter
The Fluke 805 FC is a handheld vibration meter for troubleshooting and condition monitoring of rotating machinery. It is used to quickly assess whether vibrations are at a level that requires further investigation and whether there are signs of early bearing wear.
The instrument measures overall vibration in the low-frequency range, making it suitable for broad control of the general mechanical condition of machinery. Simultaneously, it measures Crest Factor+ in a higher frequency range, which is used for bearing assessment. This means, in practice, that you can both see the overall vibration and get a more targeted indication of the condition of the bearings.
In addition, the instrument displays acceleration, velocity, and displacement, allowing you to work with the units appropriate for the specific task. The built-in Spot IR temperature sensor provides an additional benchmark when assessing whether a measurement point also deviates in temperature.
The 805 FC is relevant for daily maintenance because measurements can be stored in the instrument and transferred to a PC or mobile device. This makes it easier to compare measurements over time and see if a machine is developing in the wrong direction. For a technician, this means that the inspection round is not just a snapshot, but can also be used to track developments.
For hard-to-reach places, the instrument can be used with external accelerometer sensors, and data can be exported via USB or sent wirelessly via the Fluke Connect app.
You can read more here:
See data sheet from the manufacturer
See product video from the manufacturer
Specifications
- Handheld vibration meter for controlling machine vibration and bearing condition
- Measures overall vibration in the range of 10 Hz to 1,000 Hz
- Features Crest Factor+ measurement in the range of 4,000 Hz to 20,000 Hz for bearing assessment
- Displays acceleration, velocity, and displacement
- Built-in Spot IR temperature sensor
- Internal memory for up to 3,500 measurements
- Data can be exported via USB or transferred wirelessly with the Fluke Connect app
- Supports external accelerometer sensors
- Comes with USB cable, storage case, belt holster, quick reference guide, and 2 AA batteries
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
