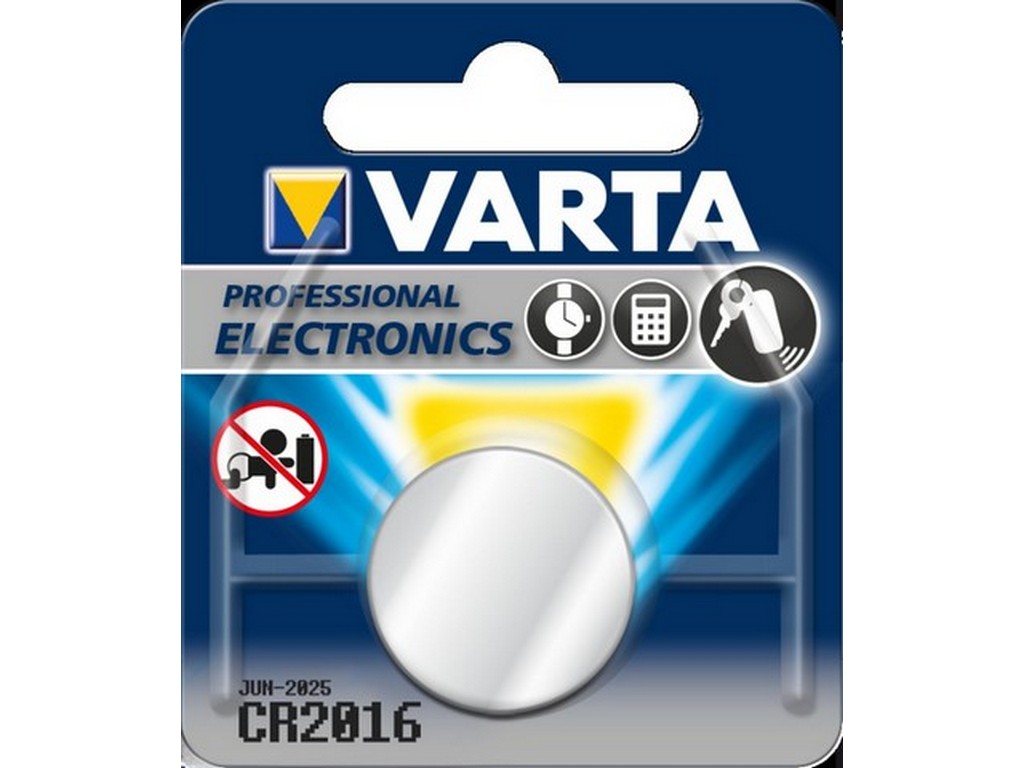

VARTA CR2016 battery cell
VARTA CR2016 is a button cell using the lithium-manganese dioxide system, designed for equipment requiring a small, stable 3 V voltage source. It is typically used as a compact primary cell, meaning a battery that is supplied ready for use and is not intended for recharging.
What is particularly notable about a CR2016 is its size. It is only 20.0 mm in diameter and 1.6 mm high, so it fits into equipment with very limited space. The capacity is typically 90 mAh, measured at a 15 kΩ load at 20°C down to 2 V. This indicates how long the cell can last in a low-power device.
As a lithium cell, it features low self-discharge and high storage stability, which is relevant for professional equipment that may be kept in storage or used only at long intervals. The weight is approximately 1.8 g, so it takes up very little space and adds minimal weight to the overall product.
See datasheet from the manufacturer
Typical applications
The CR2016 is used in compact electronics where space, stable voltage, and long service life are important characteristics. This includes low-power equipment where the cell must provide power over a long period without frequent replacement.
Specifications
- Manufacturer: VARTA
- MPN: 6016101401
- IEC designation: CR2016
- Nominal voltage: 3.0 V
- Typical capacity: 90 mAh
- Capacity measurement basis: 15 kΩ load at 20°C down to 2 V
- Dimensions: 20.0 mm x 1.6 mm
- Electrochemical system: Lithium (Li-manganese dioxide)
- Weight: approx. 1.8 g
