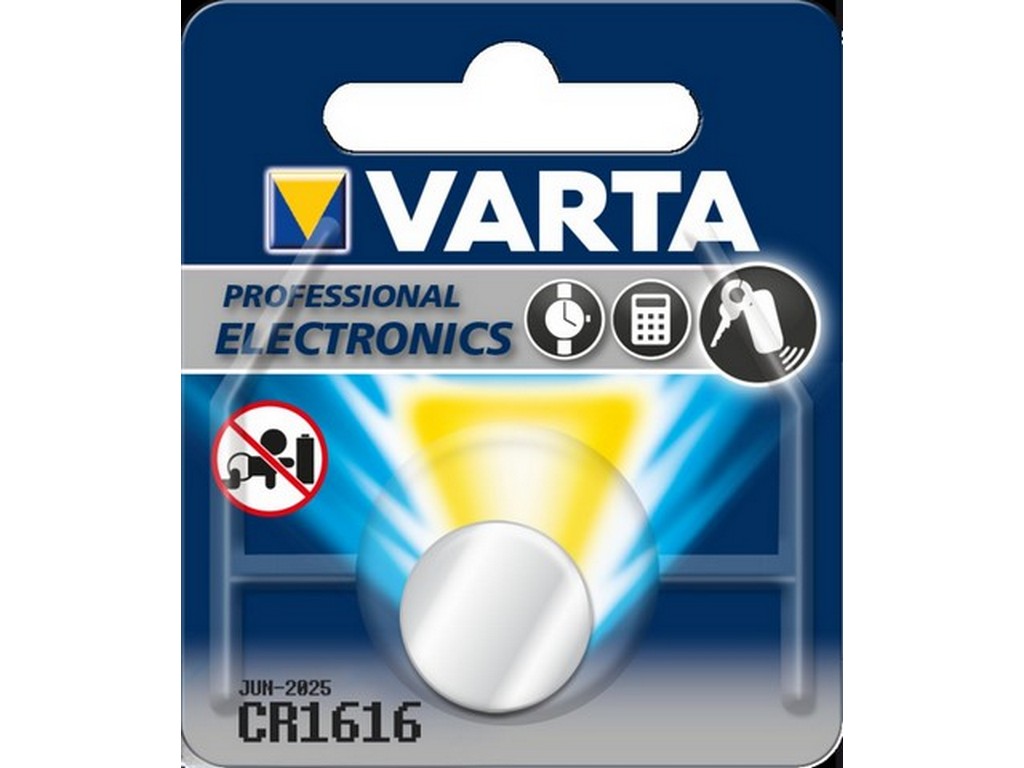

VARTA CR1616
The VARTA CR1616 is a small primary lithium coin cell battery. It is used when a stable 3 V supply is required in compact electronics where there is no space for larger batteries. The coin cell is of the Li-MnO2 type, which VARTA denotes with the IEC designation CR1616.
For a technician, it is especially the size and voltage that make it easy to work with. It is a cell with a 16.0 mm diameter and 1.6 mm height, and the typical capacity is 55 mAh at a 39 kΩ load at 20°C down to 2 V. In practice, this indicates how much energy is available in the type of low-load applications in which this cell is normally used.
As a primary cell, it is intended for replacement, not recharging. It is therefore relevant in equipment where a long shelf life and a simple power supply for small circuits are desired. VARTA also specifies the type number 6616 and consumer unit order number 06616 101 401.
See datasheet from the manufacturer
Specifications
- Manufacturer: VARTA
- MPN: 6616101401
- IEC designation: CR1616
- Cell chemistry: Lithium-manganese dioxide (Li-MnO2)
- Type: Primary lithium coin cell
- Nominal voltage: 3 V
- Typical capacity: 55 mAh
- Typical capacity measured at: 39 kΩ load at 20°C down to 2 V
- Diameter: 16.0 mm
- Height: 1.6 mm
- Type number: 6616
- Consumer unit order number: 06616 101 401
