Wall bracket for extraction arm – Alsident 2-195-050

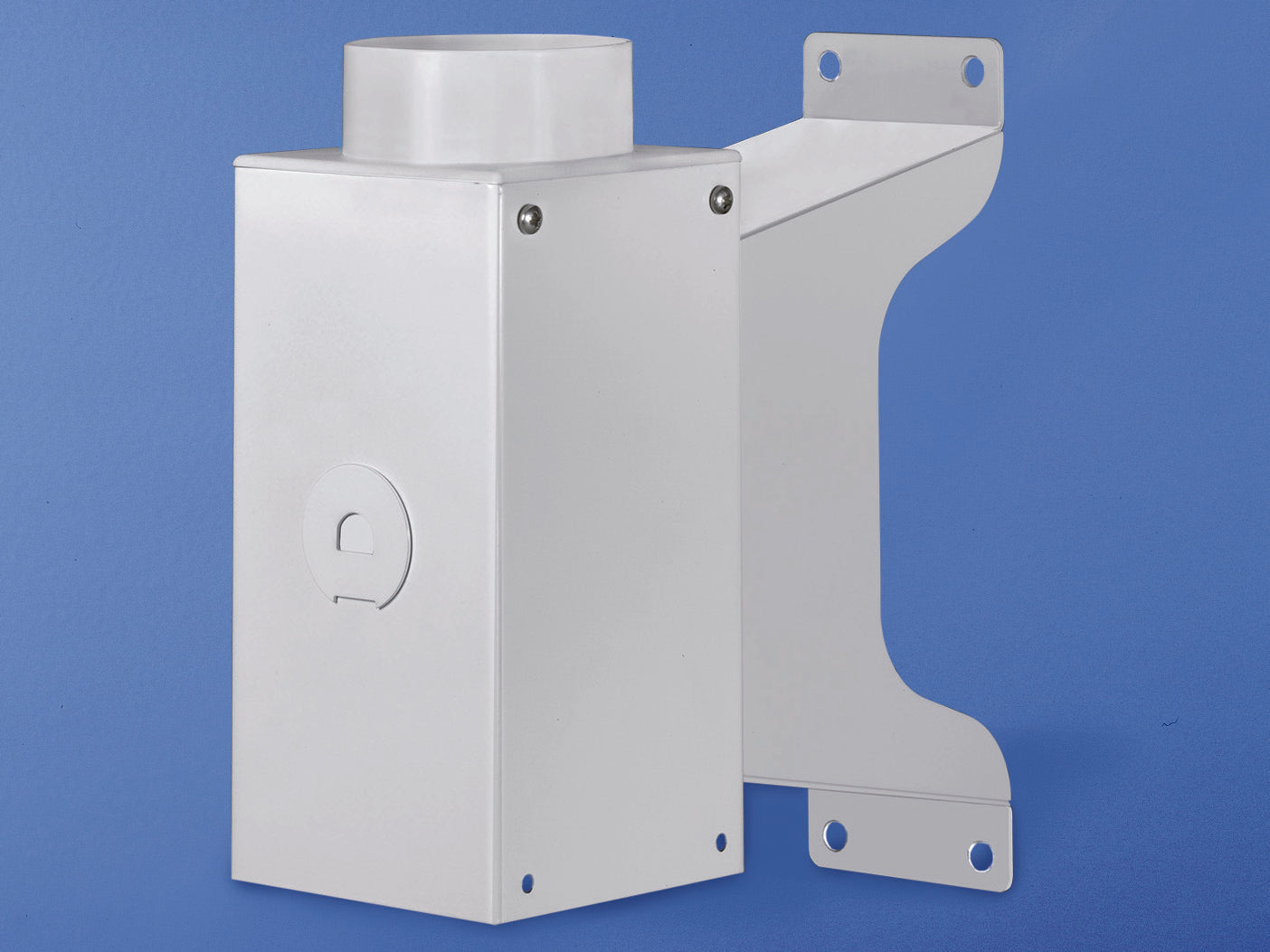

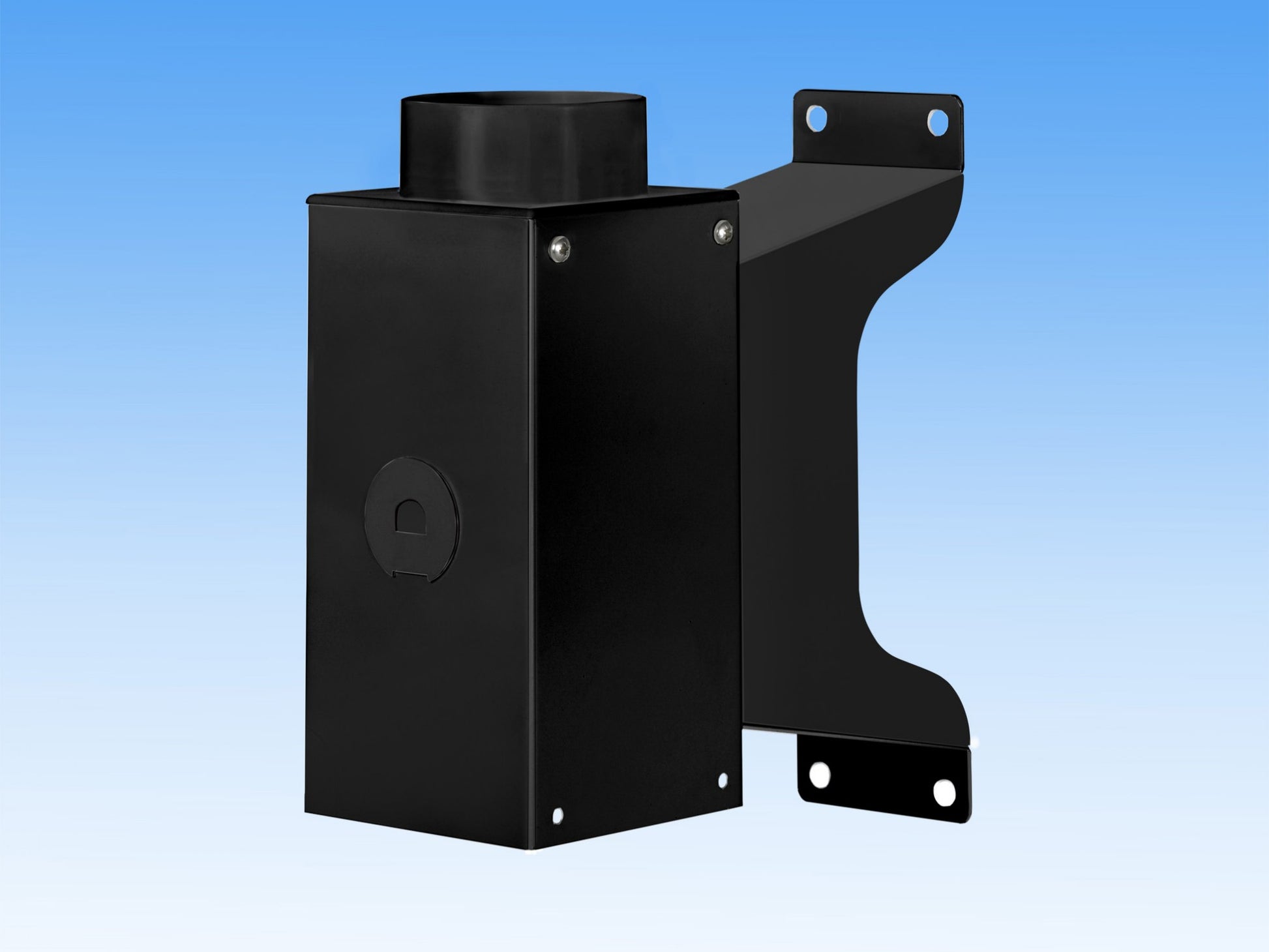

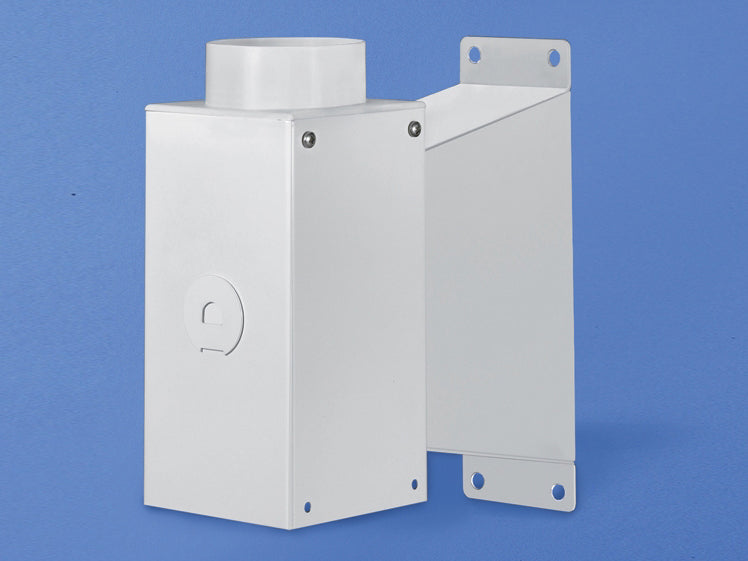

This wall bracket from Alsident, product 2-195-050, is designed for mounting Alsident System wall-mounted extraction arms and is suitable for System 50, 63 and 75. The bracket is made of surface-treated steel and is available in a black open version under the manufacturer's item number 2-195-050. Information about an acid-resistant stainless steel construction (AISI 316L) is also provided in the manufacturer's documentation.
Material and surface
- Steel with polyester powder-coated surface (specified for standard variants).
- Black open variant: manufacturer's item number 2-195-050.
- Option listed in documentation: acid-resistant stainless steel (AISI 316L).
Documentation
Detailed measurements and connection options are documented by the manufacturer. See data sheet from the manufacturer
Typical applications
- Used for mounting Alsident System wall-mounted extraction arms in System 50, 63 and 75.
Specifications
- Manufacturer: Alsident
- Item number: 2-195-050
- Compatibility: Alsident System 50, 63 and 75 (specified by the manufacturer)
- Material/surface: Steel with polyester powder coating (black open variant specified)
- Alternative material information: Acid-resistant stainless steel (AISI 316L) is listed in the documentation
- Bracket dimensions: 75 x 250 x 232 mm
- Connection options for ducts:
- Direct spiro connection Ø80 mm
- Reducer 4-10075 for Ø100 mm (reducer included)
- Connection to Alsident Ø75 aluminium pipe
- Mounting holes: 4 x Ø8 (specified in the manufacturer's technical drawing)
