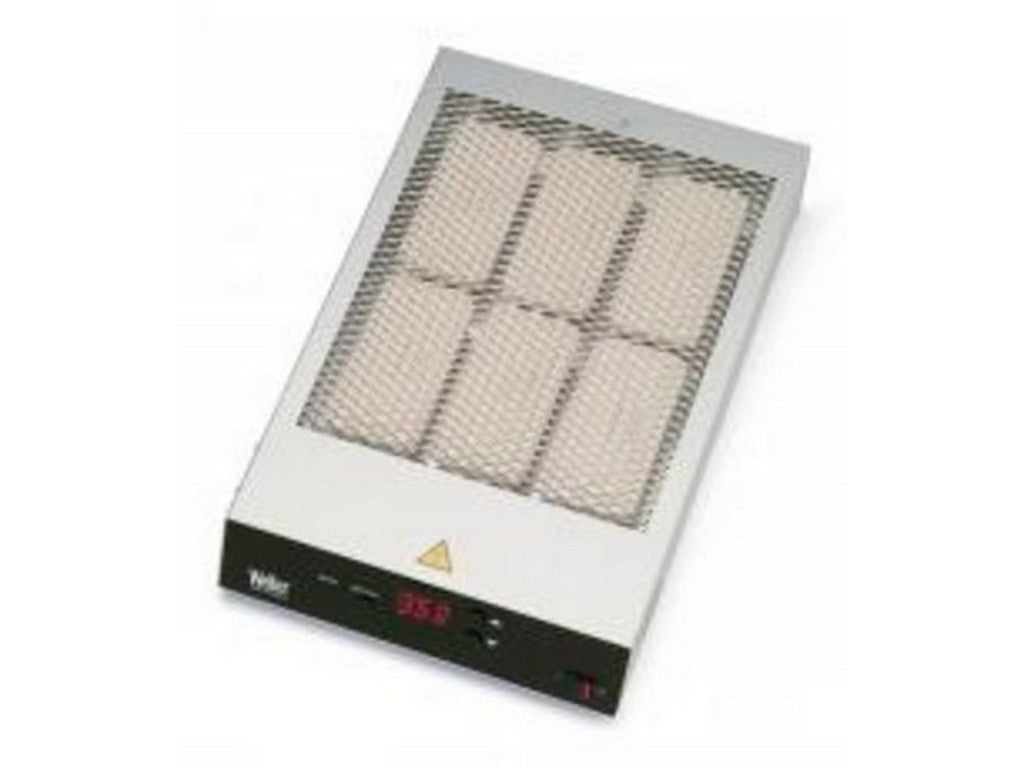

Infrared Preheating Plate WHP3000
This infrared preheating plate WHP3000 from WELLER is a digitally controlled preheating unit designed for precise heating of circuit boards prior to processing steps. The unit is specified for 1200 W at 230 V and has a heating surface of 245 x 190 mm.Function and control
The WHP3000 features digital control with separate display of set temperature and actual temperature. Heating is performed by six infrared high-temperature ceramic elements, and the unit includes two Easy Fix board holders for securing PCBs. There is an RS232 interface and a Type K thermocouple input for external temperature measurement or control.- Digitally controlled with display for set and actual temperature
- 6 infrared high-temperature ceramic elements
- 2 Easy Fix board holders
- RS232 interface and Type K thermocouple input
Documentation
For manufacturer's technical data and complete product information: See datasheet from the manufacturerSpecifications
- Product: WHP3000 (Item No. T0053364699N)
- Manufacturer: WELLER
- Power: 1200 W
- Voltage: 230 V (50/60 Hz)
- Heating surface: 245.0 x 190.0 mm
- Temperature range: 50 °C - 400 °C
- Number of heating elements: 6 infrared high-temperature ceramic elements
- Digital features: Display for set and actual temperature; digital control
- Interface: 1 x RS232; 1 x Thermocouple Type K
- Physical dimensions (L x W x H): 254.0 x 395.0 x 70.0 mm
- Supported board size: up to 190 x 245 mm
- Easy Fix: 2 board holders
- ESD Safe: Yes
- Product family: Pre-Heating Plates
