STAUBLI 18.3012

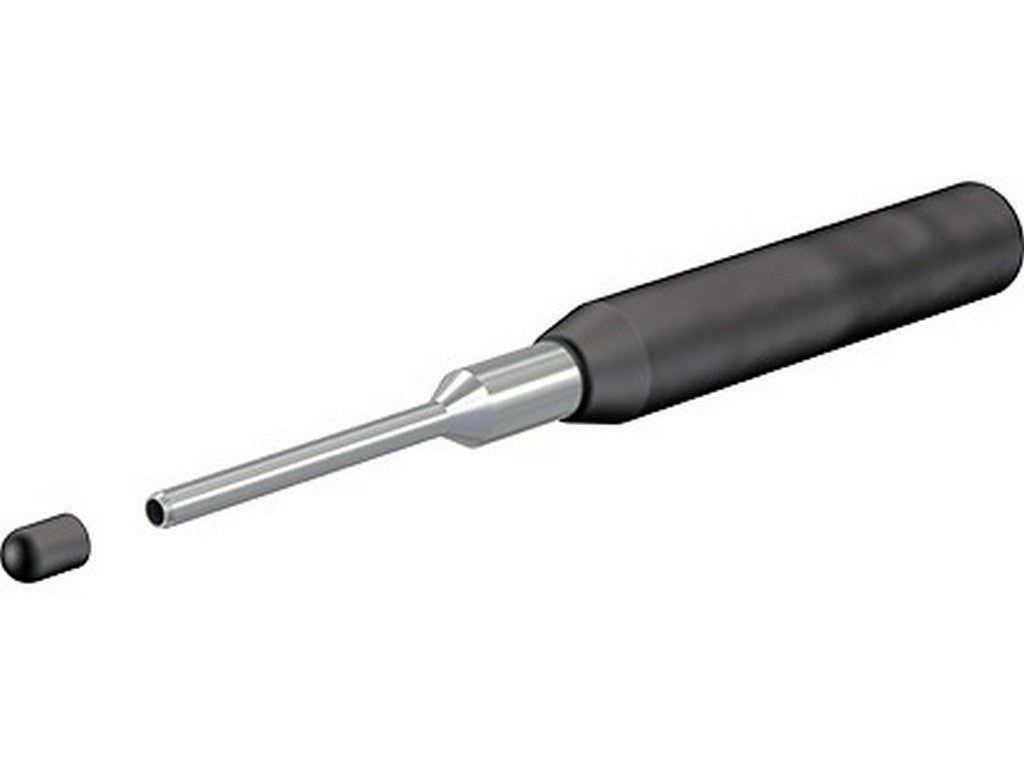

The STAUBLI 18.3012 is an extraction tool, also called a pin, for working with multi-couplings. It is used when a pin contact needs to be re-extracted without damaging the contact or the associated insert. In practice, it is a tool used during assembly, modification, or servicing when a contact needs to be released in a controlled manner.
The tool is designated as type MSA-WZ3 and is intended for pin contacts with nominal diameters of 2.36 mm and 3 mm. Staubli also states that it is used with thermocouple contacts and their associated blind plugs, including blind plug MVS3 and MVS3/PE. This makes it a spare part that fits into the same contact family and workflow as the rest of the Stäubli multi-coupling program.
For a technician, this essentially means that extraction can be performed with a tool specifically designed for the specified contact dimensions. This is important when working with contacts that need to be neatly and precisely removed rather than being pulled out with unsuitable aids.
See data sheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 18.3012
- Type designation: MSA-WZ3
- Extraction tool for pin contacts
- For nominal diameters: 2.36 mm and 3 mm
- Stated for use with thermocouple contacts
- Stated for use with blind plug MVS3
- Stated for use with blind plug MVS3/PE
- Referenced in the Stäubli multi-couplings catalog
- Referenced in Stäubli assembly instruction documents (MA213 series)
