STAUBLI 18.3001

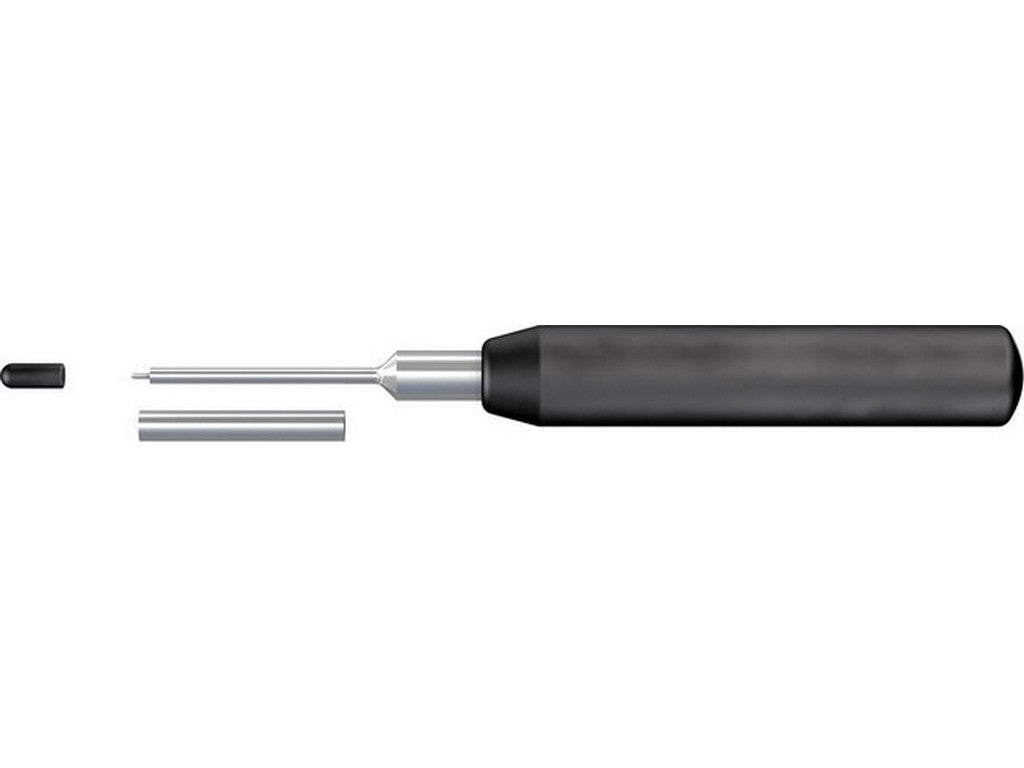

The STAUBLI 18.3001 is an extraction tool for sockets. It is used when a contact needs to be removed from an assembled connector without damaging the contact itself or its housing. In practice, it is a go-to tool for service, modification, or troubleshooting when a single contact needs to be replaced or moved.
The tool has the type designation MBA-WZ1/1.2 and is specified for a nominal diameter of 1 mm. It is therefore suitable for Stäubli systems that use contacts of this size. In Stäubli's own documentation, it appears alongside assembly instructions MA213-01 and the "Connectors for multi-couplings" catalog.
When working professionally with these connections, it is often critical to be able to disassemble a contact in a controlled and safe manner. This is precisely where such an extraction tool makes a difference. It saves time during repair and makes it easier to work precisely in tight plug and coupling assemblies.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 18.3001
- Type designation: MBA-WZ1/1.2
- Product type: socket extraction tool
- Nominal socket/pin diameter: 1 mm
- Order number: 18.3001
- Documentation: Stäubli assembly instruction MA213-01
- Documentation: “Connectors for multi-couplings” catalog from Stäubli
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
