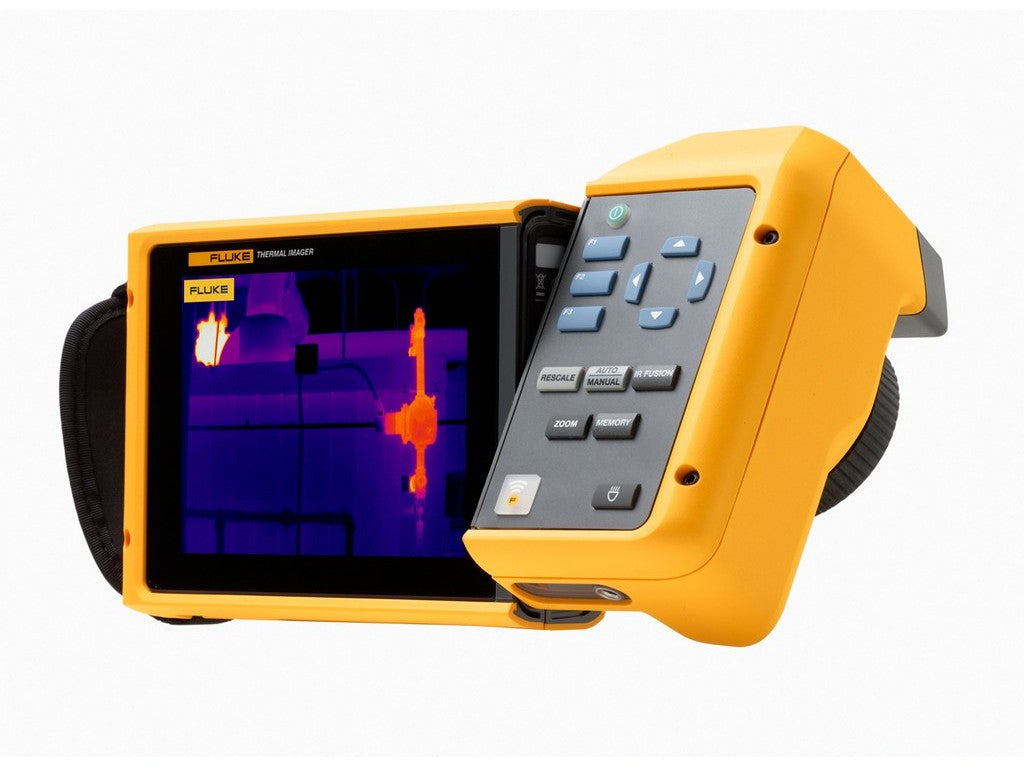

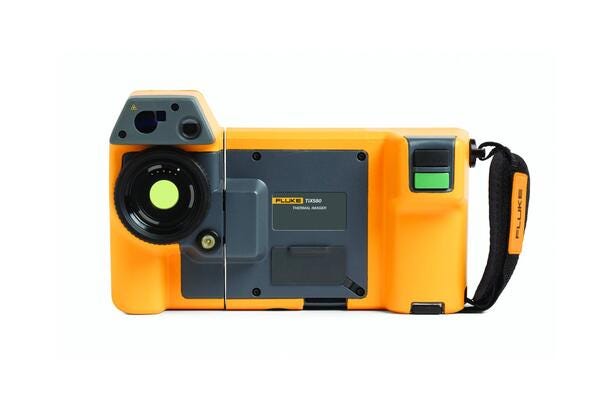

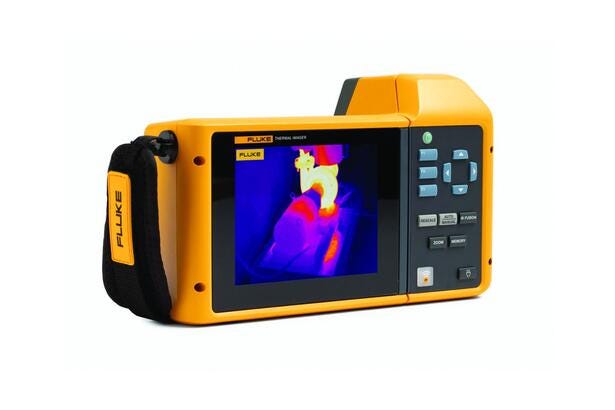

Fluke TiX580
The Fluke TiX580 is a thermal camera for inspections where heat distribution needs to be observed on electrical, mechanical, or other technical systems. It is used to identify faults or deviations before they escalate into operational downtime or more costly problems.
The camera features an infrared resolution of 640 x 480 pixels and a frame rate of 60 Hz, allowing it to smoothly track thermal processes during measurement. The large 5.7" LCD touchscreen makes it easier to work directly on the camera, and the 240° rotating lens helps when measuring at angles or in other hard-to-reach places.
The Fluke TiX580 also includes features that make on-site image processing more convenient. LaserSharp Auto Focus aids in quick focusing and distance measurement, while MultiSharp Focus can combine multiple focus points into a single image. On-camera SuperResolution is used to combine four images for higher image resolution, making details clearer.
The housing is IP54 rated, protecting the camera from dust and water splashes from all directions. This makes it more suitable for daily use in industrial environments. The package includes two smart lithium-ion batteries, an AC adapter/charger, USB and HDMI cables, a Bluetooth headset where available, and a rugged carrying case.
Typical applications

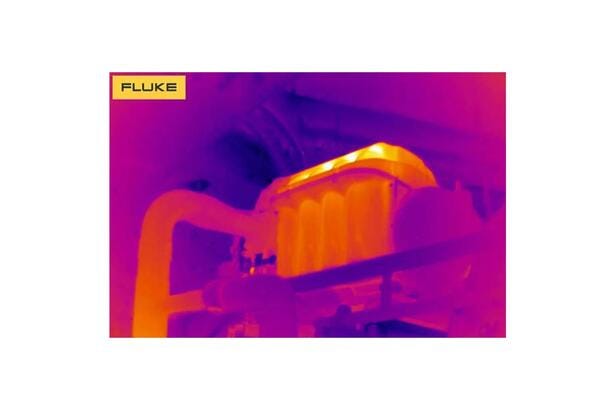

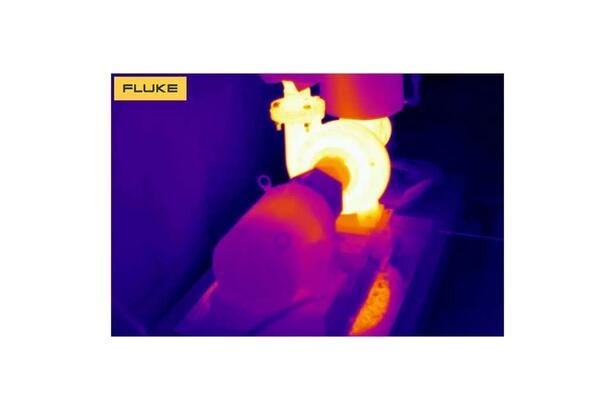

Thermography of electrical panels, machinery, and installations, where temperature deviations need to be found and assessed quickly.
Specifications
- Manufacturer: FLUKE
- MPN: 4842073
- Infrared resolution: 640 x 480 (307,200 pixels)
- Display: 5.7" 640 x 480 LCD touchscreen
- Frame rate: 60 Hz
- Lens: 240° rotating (articulating) lens
- SuperResolution: 1280 x 960
- Focus functions: LaserSharp Auto Focus and MultiSharp Focus
- Housing classification: IP54
- Included: two lithium-ion smart battery packs, AC power supply/charger, USB cable, HDMI cable, Bluetooth headset (where available), rugged hard carrying case
- Datasheet: https://media.fluke.com/0927e54c-3447-45ca-bc7c-b1060069ba9a_original%20file.pdf
