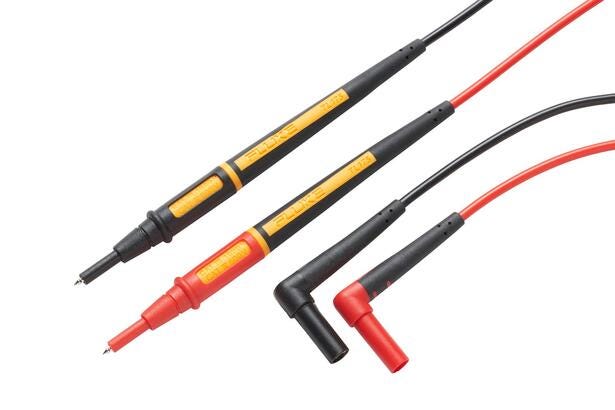

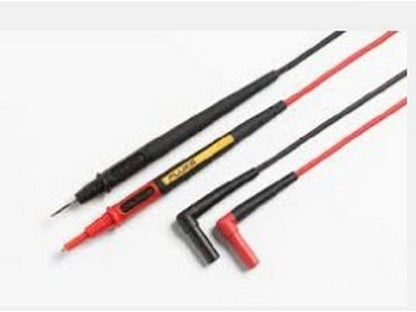

Fluke TL175 TwistGuard Test Leads
The TL175 TwistGuard is a set of test leads for general electrical measurements with multimeters and other measuring equipment that use standard 4mm shrouded banana plugs. These are the leads used between the instrument and the test point when measuring voltage, continuity, or other electrical quantities.
What's special about this type of test lead is its adjustable tip protection. By rotating the protection, the visible probe tip can be changed from 19mm to 4mm. This makes them practical when you sometimes need more tip exposed to reach tight spaces, and other times want less exposed metal when measuring in more demanding environments.

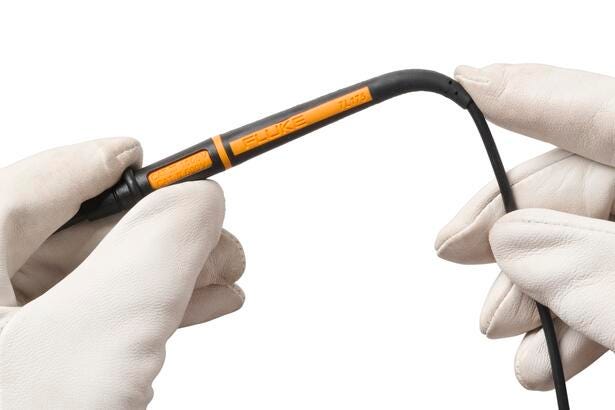

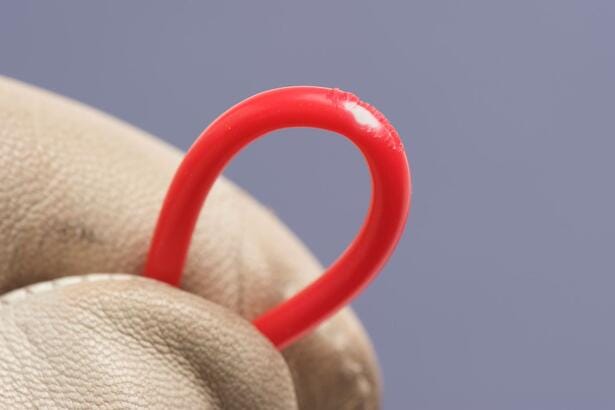

The leads are made with double-insulated silicone, making them both flexible and durable for tough use in the field and workshop. There's also a WearGuard wear indicator, which makes it easier to see if the insulation has started to degrade. At the same time, the strain relief at both the probe and the plug has been tested for more than 30,000 bends, so the leads are built for repeated daily use.

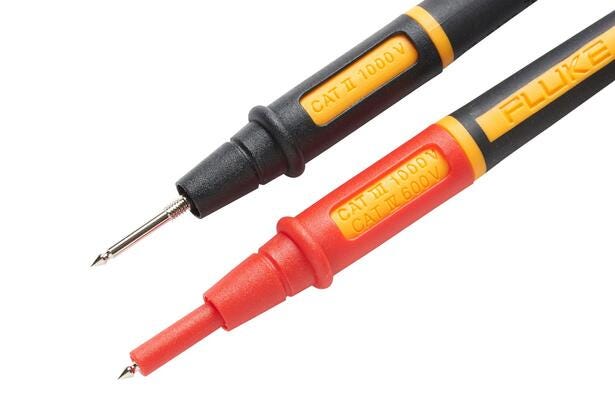

They are rated for CAT II 1000 V, CAT III 1000 V, and CAT IV 600 V, as well as 10 A max. In practice, this means they are designed for measurement work in installations where safety requirements must be met, and where you need to choose test leads appropriate for the task.
This is therefore a set of test leads you choose when you want an original Fluke solution with a correct fit for measuring instruments with a 4mm banana input and with adjustable tip protection for various measuring situations.
Specifications
- Fluke TL175 TwistGuard Test Leads, part no. 3521976
- Adjustable tip protection: 19 mm to 4 mm
- Universal 4 mm shrouded banana plugs
- Double-insulated silicone
- WearGuard wear indicator
- CAT II 1000 V
- CAT III 1000 V
- CAT IV 600 V
- 10 A max.
- Complies with EN61010-031
- Temperature range: -20 °C to 55 °C
- Strain relief tested to over 30,000 bends
