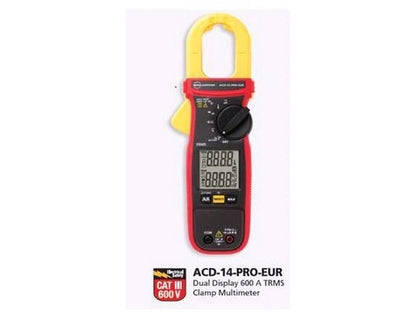

Amprobe ACD-14-PRO
The Amprobe ACD-14-PRO is a clamp meter with a dual display, allowing you to read current and voltage simultaneously. This is a practical advantage when troubleshooting and needing an overview without constantly switching between measurements.
The instrument measures AC current up to 600 A and AC/DC voltage up to 600 V. It uses True-RMS, which provides more reliable measurements in AC environments where the signal is not perfectly clean. In addition, it features a low-pass filter, an Amp-Tip function for more precise measurement of small currents, and inrush measurement to check the starting current of, for example, motors or other loads.
With a jaw opening of 30 mm, it can clamp around many common conductors, and it also measures microamperes as well as temperature with the included Type-K thermocouple. This makes it suitable for various types of service and installation tasks where current, voltage, and temperature need to be checked with a single instrument.
This is a measuring instrument for professional use, and the safety class CAT III 600 V indicates that it is designed for installations where one typically works in control panels and fixed installations within the specified category.
Typical Applications
- Troubleshooting electrical installations
- Measuring current and voltage in service tasks
- Checking inrush current in loads with high starting current
- Measuring microamperes and temperature with a Type-K thermocouple
Specifications
- MPN: 4718989
- Manufacturer: AMPROBE
- AC current: up to 600 A
- AC/DC voltage: up to 600 V
- True-RMS measurement
- Low-pass filter
- Amp-Tip function
- Inrush current measurement
- Measures microamperes
- Measures temperature with Type-K thermocouple
- Jaw opening: 30 mm
- Safety category: CAT III 600 V
- Datasheet: See datasheet from the manufacturer
