Product Overview

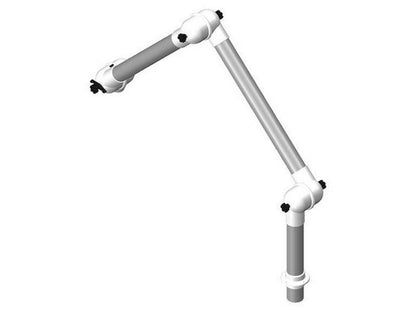

This extraction system (suction arm) from ALSIDENT, System 75, is a bench-mounted 3-joint model designed for local extraction. The product is supplied in the variant with article number 75-5545-1-5 and has a pipe diameter of Ø75 mm. System 75 is documented by the manufacturer with technical specifications, installation instructions, and a PDF datasheet for download.
Technical Description
- Bench-mounted 3-joint suction arm (model based on article number 75-5545-1)
- Pipe diameter: Ø75 mm
- Arm's working range for this 3-joint model: 1105 mm
- Recommended airflow: minimum 80 m³/h, normal 140 m³/h, maximum 180 m³/h
- Tubes in anodized aluminum with 10 μ surface
- Joints/couplings in impact-resistant, chemically resistant polypropylene (PP); color codes: white (-5) and red (-4)
- All O-rings are maintenance-free
- Integrated damper, which in the open position is kept out of the flow path to maintain maximum throughput
- All threaded shafts, springs, and thumb screws in acid-resistant stainless steel (AISI 316L); POP® rivets acid-resistant for increased durability
- All components are RoHS compliant
- Hoods/caps can be supplied with protective mesh as an accessory
- Arms can be disassembled without tools for cleaning
Documentation
The manufacturer provides detailed specifications and installation instructions. See datasheet from manufacturer
Typical Applications
System 75 is used for local extraction using a suction arm. The bench-mounted 3-joint configuration with a working radius of 1105 mm makes System 75 suitable for applications where a movable local extraction arm is desired.
Specifications
- Product name: System 75
- Manufacturer: ALSIDENT
- Manufacturer's item number: 75-5545-1-5
- Pipe diameter: Ø75 mm
- Working range (3-joint bench model): 1105 mm
- Recommended airflow: 80 / 140 / 180 m³/h (min/normal/max)
- Material – tubes: Anodized aluminum (10 μ surface)
- Material – joints: Polypropylene (PP), color codes: -5 = white, -4 = red
- All components RoHS compliant
Source: Manufacturer's official documentation and datasheet (link above).
