Product Overview

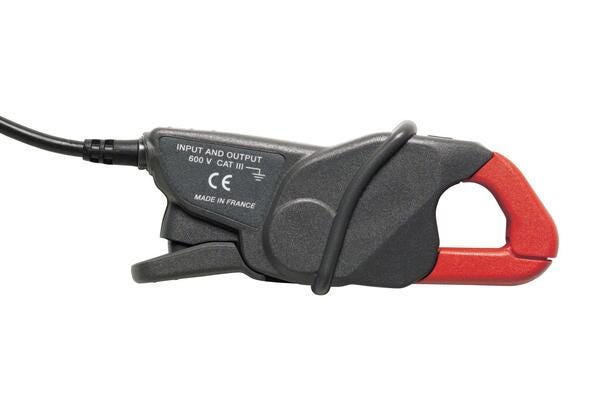

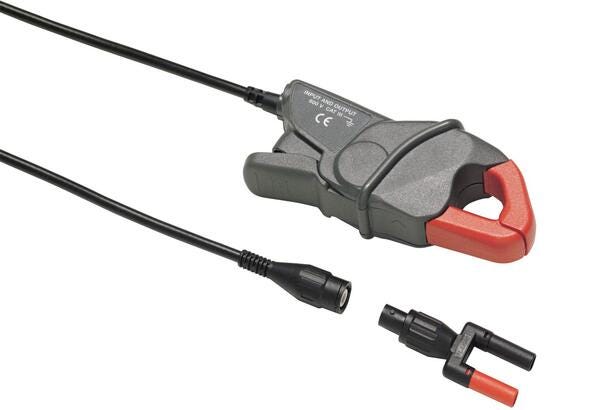

This dual-range AC current clamp from Fluke, the Fluke i200s (Part#: 664760), is designed to measure AC current in two measurement ranges: 20 A and 200 A. The Fluke i200s provides voltage output via a safety-insulated BNC connection and includes a dual banana-to-BNC adapter for connection to multimeters.Performance and Functionality
- Two measurement ranges: 20 A and 200 A (i200s).
- Voltage output: 100 mV/A on the 20 A range and 10 mV/A on the 200 A range.
- Safety rating: CAT III 600 V.
- Basic accuracy stated as 1.5% + 0.5 A (48–65 Hz) for the relevant ranges.
Usage and Compatibility
The i200s has a safety-insulated BNC output and can be connected to instruments with BNC input. The included dual banana-to-BNC adapter allows for direct connection to multimeters with banana inputs. For details on connection, range selection, and orientation for phase/neutral measurements, please refer to the manufacturer's instructions.
Typical Applications
- Measurement of AC current in single conductors with a maximum conductor diameter of 20 mm or busbar 20 x 5 mm, as stated in the manufacturer's documentation.
- Phase and neutral measurements with correct orientation of the clamp jaws (arrow direction indicated on the clamp).
- Connection to oscilloscope, ScopeMeter, or multimeter via BNC or the included adapter for display of current value and waveform.
For detailed electrical specifications, accuracy data, and instructions regarding safety and use, please refer to the manufacturer's documentation.
Specifications
- Manufacturer: FLUKE
- Model / Part number: i200s (Part#: 664760)
- Measurement ranges: 20 A and 200 A
- Voltage output: 100 mV/A (20 A range), 10 mV/A (200 A range)
- Maximum conductor diameter: 20 mm (ø) or busbar 20 x 5 mm
- Safety: CAT III 600 V
- Basic accuracy: 1.5% + 0.5 A (48–65 Hz) (stated in manufacturer's documentation)
- Maximum non-destructive current: 240 A
- Cable length (output): 2 m
- Included accessories: Dual banana-to-BNC adapter
