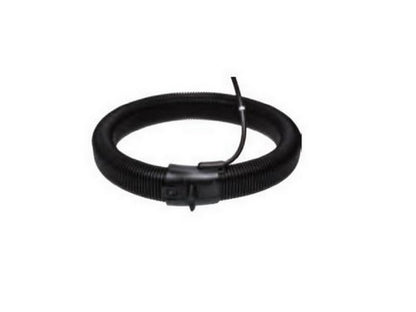

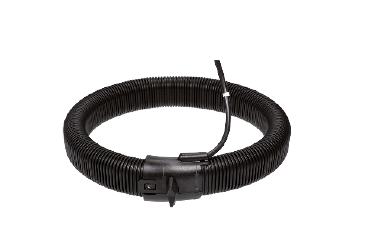

Summation current sensor (splittable)
The summation current sensor (splittable) from HORSTMANN is a sensor for earth fault detection in medium-voltage networks. The product is listed as splittable and is intended for use with Sigma D+, Sigma D++ and the ComPass B-series. The summation current sensor (splittable) measures residual currents by being placed around all three-phase conductors, enabling high-precision detection of very low earth fault currents.
Function and features
- Splittable design (can be installed without interrupting wiring).
- Designed to detect residual currents by placing the sensor around all three phase conductors.
- Supports precise detection of very low earth fault currents.
- Compatible with Sigma D+, Sigma D++, and the ComPass B-series.
Typical applications
The summation current sensor (splittable) is used for earth fault detection in medium-voltage networks, especially in RESPE networks (resonant earthing with voltage limitation). In combination with a directional fault indicator like Sigma D+, the sensor can contribute to selective fault localization independent of neutral point treatment.
Documentation
For technical product information and product data, please refer to the manufacturer's product information.
See manufacturer's product information
Specifications
- Product: Summation current sensor (splittable).
- Inner diameter (Inner Ø): 220–250 mm.
- Cable length: 4.00 m.
- Article number (Art. No.): 49-6023-020.
- Compatibility: Sigma D+, Sigma D++, ComPass B-series.
- Area of application: Earth fault detection in medium-voltage networks, especially RESPE networks.
Sources
Manufacturer's product information: See manufacturer's product information
