Stäubli 05.0201

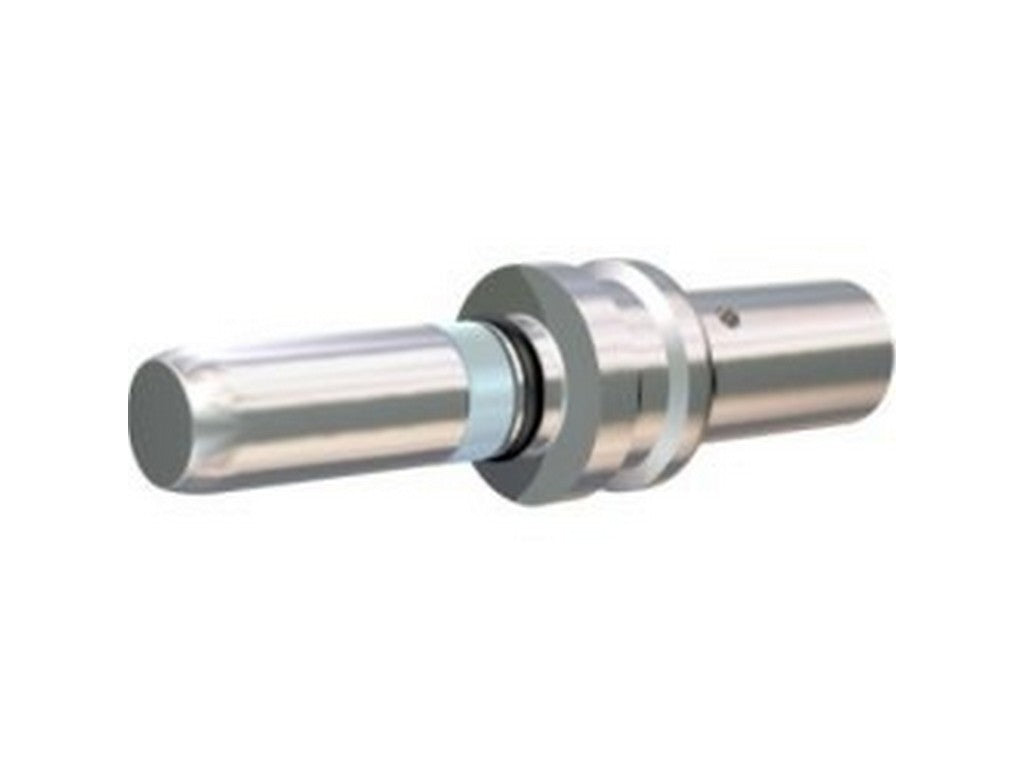

The Stäubli 05.0201 is an uninsulated, single-pole circular plug of type SP6AR-N/10. It is used when a pluggable power connection is required on a flexible copper cable, and a compact and simple solution for high current is desired.
It is a crimp-terminated plug for flexible Cu conductors of 10 mm². In the Stäubli catalog, it is rated for 80 A at 80 °C and belongs to the single-pole circular plugs in the SP...AR-N series with snap-in locking. This lock helps keep the connection securely together during use.
For assembly, Stäubli recommends hexagonal crimping, and special crimping sleeves are used for compacted conductors. In practice, this is the type of connector chosen when a robust, detachable connection is needed in a system, panel, or industrial installation where secure and stable power transfer is required.
See datasheet from the manufacturer
Typical Applications
- Power connections in industry and panel building
- Pluggable connections on flexible copper cables
- Installations where a single-pole high-current connection needs to be detachable
Specifications
- Manufacturer: STAUBLI
- MPN: 05.0201
- Type: SP6AR-N/10
- Uninsulated, single-pole circular plug
- Crimp termination
- For flexible copper cables
- Cable cross-section: Cu 10 mm²
- Rated current: 80 A at 80 °C
- Snap-in lock
- Recommended crimping: hexagonal crimping
- Dimensions: ØA 9 mm, ØB 6 mm, length C 22 mm, total length D 45 mm
- Weight: 0.012 kg
