STAUBLI 15.0659-21

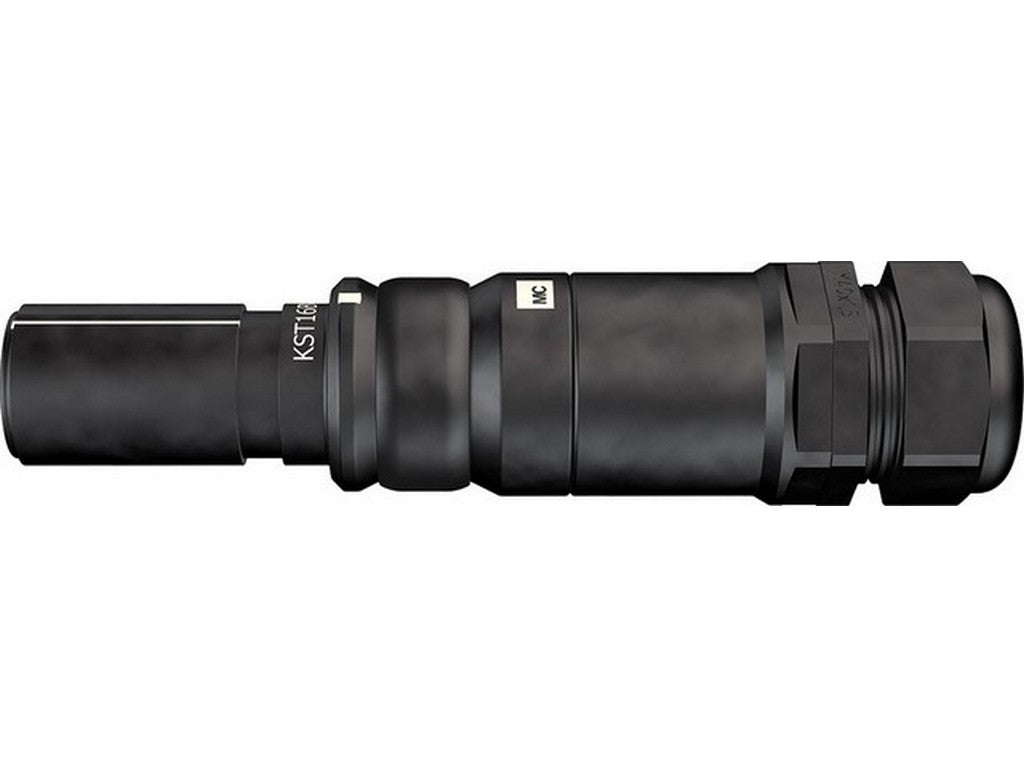

The STAUBLI 15.0659-21 is a plug from the 16BV series, specifically the plug version KST16BV-AX/M40/50-70. It is part of Stäubli’s round 16BV connector family and is designed for professional cable connections where a secure and mechanically stable connection is required.
The connector features a bayonet lock, allowing for quick and secure assembly with a twisting motion. It also incorporates an AxiClamp connection, which is specified for flexible cables in class 51 and class 61. This makes it relevant when working with larger conductor cross-sections and cables that need to be properly connected without unnecessary hassle.
Its typical application is in technical installations and equipment where the cable dimension is known in advance. Here, it is essential that the connector and cable match, both electrically and mechanically. For this version, the conductor cross-section is specified at 50–70 mm², and the cable gland is specified for an outer diameter of 15–28 mm.
The documented dimensions for the connector are approximately 209 mm in length and 51.5 mm in diameter. For more technical details, such as rated voltage and derating diagrams for the 16BV series, Stäubli refers to their product catalog.
See datasheet from the manufacturer
Typical applications
Connectors of this size are used when a robust connection is needed for heavier flexible cables in the round 16BV family.
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0659-21
- Stäubli order number: 15.0659-*
- Product designation: KST16BV-AX/M40/50-70
- Series: 16BV round connector family
- Locking: Bayonet lock
- Connection: AxiClamp
- For flexible cables: Class 51 and class 61
- Conductor cross-section: 50–70 mm²
- AWG: 1/0–2/0
- Cable gland Ø-range: 15–28 mm
- Documented length: A = approx. 209 mm
- Documented diameter: B = approx. 51.5 mm
- Manufacturer's catalog: PL-16BV-11013990
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
