STAUBLI KST16BV-AX/M40/50-70

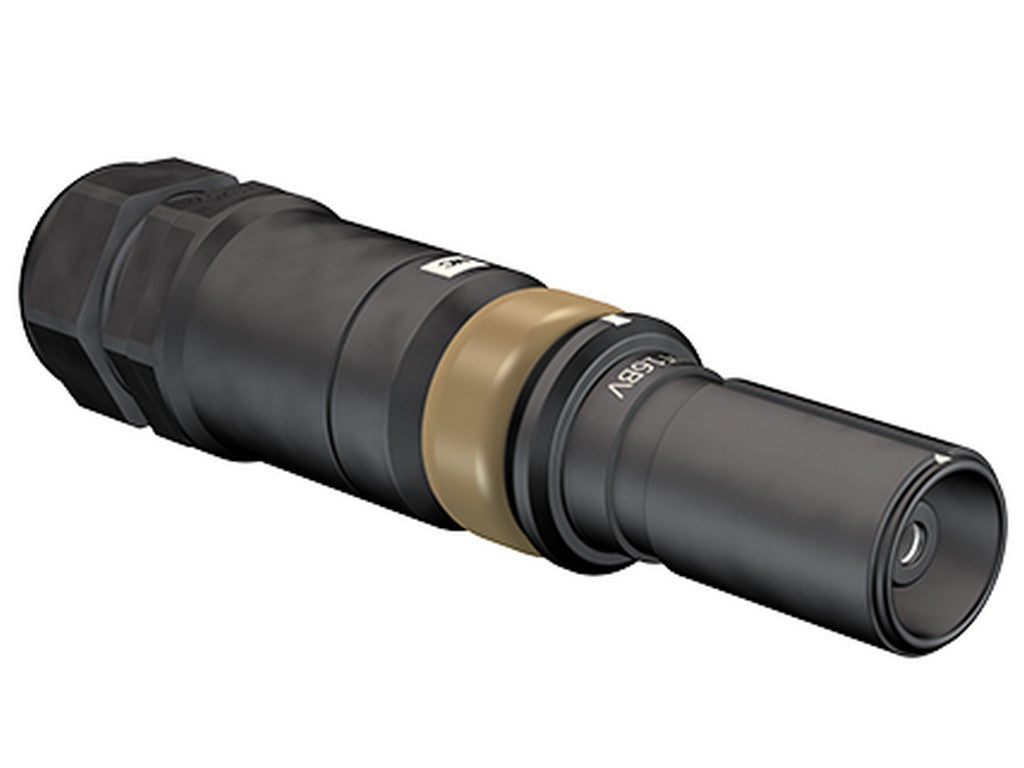

The Staubli KST16BV-AX/M40/50-70 is a circular plug from the 16BV series with bayonet lock and AxiClamp cable termination. It is used when a secure and robust connection is needed for a flexible cable, and where the connection must also be able to be quickly and controllably assembled and disassembled.
It is designed for conductors of 50–70 mm², equivalent to 1/0–2/0 AWG, and is specified for flexible cables such as H07RN-F. The cable entry is for cables with a diameter of 15–28 mm, and the maximum outer conductor diameter is 12.5 mm. This makes it relevant in installations where the cable takes up a lot of space, and where proper mechanical strain relief is desired around the connection.
The bayonet lock is a practical detail in this type of connector. It provides a clear mechanical locking mechanism that is easy to handle in daily use, especially when the connection needs to be reliable in a professional work situation. At the same time, the AxiClamp solution is designed for cable termination in a way that suits the large conductor cross-sections for which the connector type is intended.
The specified dimensions are approximately A = 209 mm and Ø B = 51.5 mm. The datasheet also indicates a crimping-sleeve outer diameter of 12.5 mm and an AxiClamp-sleeve spanner size of Ø F = 16 mm.
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0659-27
- Series: 16BV
- Type: Circular plug with bayonet lock
- Cable Termination: AxiClamp
- Conductor cross-section: 50–70 mm² (1/0–2/0 AWG)
- Suitable for flexible cables, e.g., H07RN-F
- Cable gland diameter: 15–28 mm
- Max. conductor outer diameter: 12.5 mm
- Crimping-sleeve outer diameter: 12.5 mm
- AxiClamp sleeve spanner size: Ø F = 16 mm
- Approx. dimensions: A = 209 mm
- Approx. dimensions: Ø B = 51.5 mm
See datasheet from the manufacturer
