STAUBLI 15.0661-20

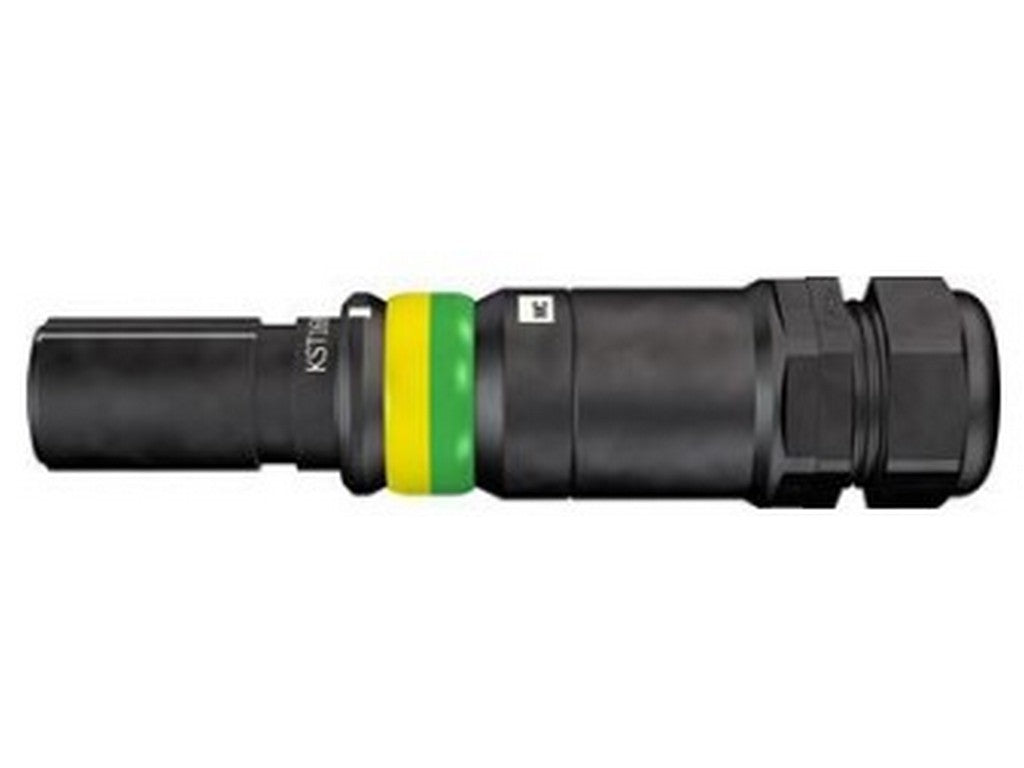

The STAUBLI 15.0661-20 is a connector for heavy-duty connections in Stäubli's 16BV series. It is a plug with a bayonet lock and AxiClamp connection, used for flexible cables. In practice, this means a robust and controlled cable termination for installations requiring very high current and voltage.
The 16BV series is rated for use up to 1000 V and has a rated current of 530 A. This variant is designed for conductor cross-sections of 150–185 mm², making it suitable for heavy cables in professional electrical engineering and industry. The cable gland is for cable diameters 15–28 mm, and the maximum conductor diameter is 20 mm.
The bayonet lock provides a secure mechanical connection that is easy to work with in practice. The AxiClamp connection is designed for flexible cables and helps achieve proper termination of the conductor in the connector. This type of detail makes a difference when the connection needs to be both strong and reliable.
The outer dimensions are approximately 209 mm in length and 51.5 mm in diameter. The AxiClamp sleeve has a wrench size of 27 mm.
See datasheet from the manufacturer
Typical Applications
Used in installations with very high currents, where a strong and precise connector for flexible cables is required.
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0661-20
- Product: KST16BV-AX/M40/150-185 plug
- Series: 16BV
- Connection: Bayonet lock
- Cable connection: AxiClamp for flexible cables
- Rated voltage: up to 1000 V
- Rated current: 530 A
- Conductor cross-section: 150–185 mm²
- Cable gland, Ø-range: 15–28 mm
- Max. conductor diameter: 20 mm
- Outer dimensions: approx. 209 mm long
- Outer diameter: approx. 51.5 mm
- AxiClamp sleeve wrench size: 27 mm
