Desktop Insulation Tester

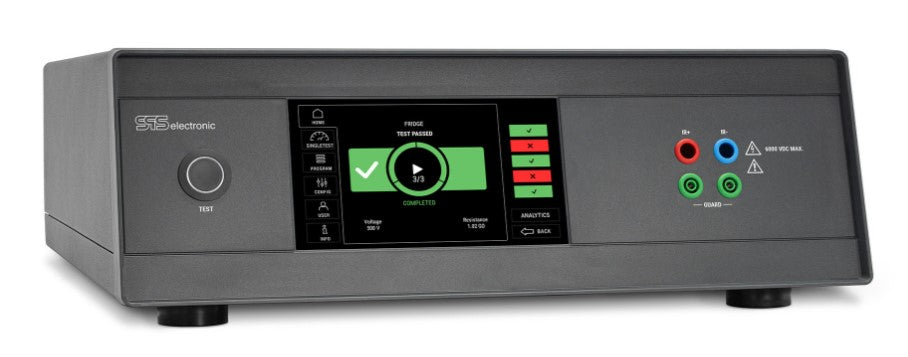

This desktop insulation tester from SPS-ELECTR, IS 6600H, is designed for measuring insulation resistance at DC test voltages up to 6,000 V. The product delivers test voltages from 100 V to 6,000 V and a test current range of 0–20 mA. The IS 6600H is intended for determining electrical insulation resistance within the specified measurement range and includes guard technology.
Features
- DC test voltage: 100 V – 6,000 V
- Test current: 0–20 mA
- Insulation resistance measuring range: 100 kΩ – 50 GΩ
- Guard technology: 10 GΩ/kV
- Wide mains voltage range: 90–250 V, 50/60 Hz
Typical applications
Information from the manufacturer indicates specific applications for insulation measurement and testing. The IS 6600H can be used for:
- Conducting insulation measurements on both protection class I (with PE) and protection class II (without PE), as stated in the manufacturer's text.
- Detecting insulation weaknesses between electrical conductors and the protective conductor or the device's housing.
- Identifying insulation weaknesses between electrical conductors.
- Checking for poor insulation related to air and creepage distances.
The manufacturer also notes that a test voltage of 500 V DC is often used when measuring insulation resistance.
Further technical details and manuals can be found in the manufacturer's documentation.
Specifications
- Product name: IS 6600H
- Manufacturer: SPS-ELECTR
- DC test voltage: 100 V – 6,000 V
- Test current: 0–20 mA
- Measuring range insulation resistance: 100 kΩ – 50 GΩ
- Guard technology: 10 GΩ/kV
- Short-circuit current: >20 mA (stated in manufacturer documentation)
- Residual ripple: <3% (stated in manufacturer documentation)
- Mains voltage: 90 V – 250 V, 50/60 Hz
- Interface: USB and Ethernet/LAN (stated in manufacturer documentation)
- Operation: Keypad and 7" TFT color display (stated in manufacturer documentation)
- Dimensions (desktop IS 6600H, approx.): H 148 mm × W 420 mm × D 508 mm
- Weight (desktop IS 6600H, approx.): 20.4 kg
Content generated with the help of AI – subject to errors.
