Spiralbor 4,2mmx75mm HSS-Tin DIN 338N

Twist Drill Bit

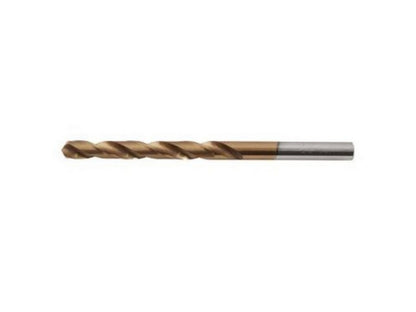

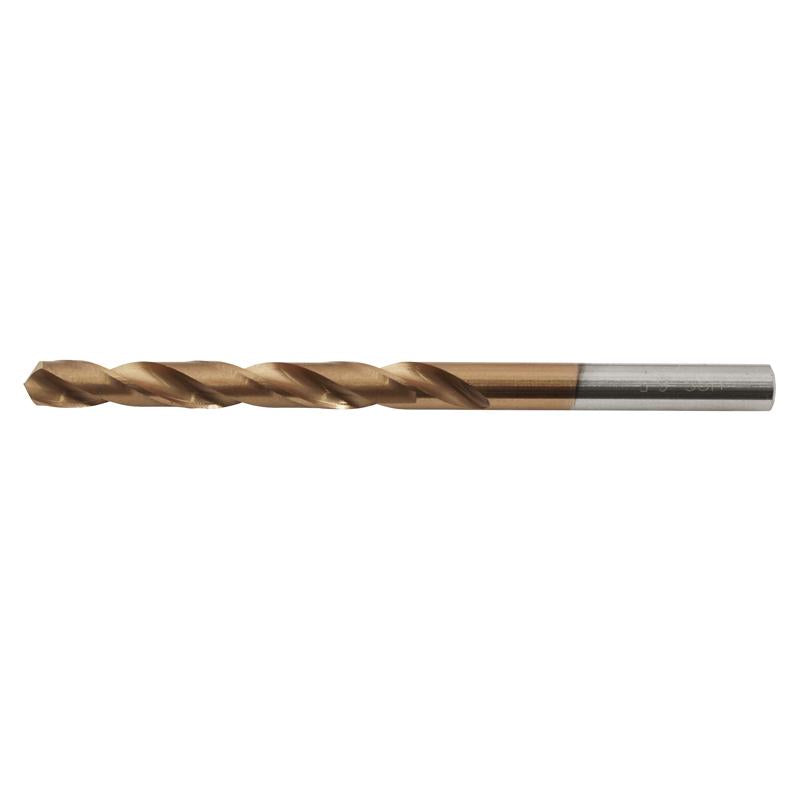

The DIESELLA 60225146 is a twist drill bit made of HSS with TiN coating and designed according to DIN 338 N. The drill bit is cylindrically ground with two cutting edges and a point angle of 118°. The description below focuses on verified technical properties and relevant application aspects.

Technical Description

This twist drill bit (DIESELLA 60225146) has the following verified properties, which affect use and handling:

• Material: HSS-TiN (High-Speed Steel with Titanium Nitride coating).
• Standard: DIN 338 N, cross-ground according to DIN 1412C.
• Cutting diameter: 4.20 mm; flute length: 43 mm; total length: 75 mm.

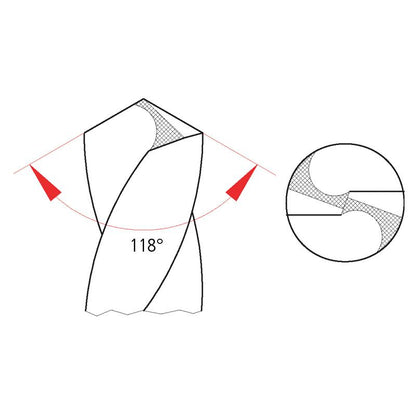

• Shank: cylindrical; number of cutting edges: 2; point angle: 118°.
• Coating: TiN — specified for improved wear and heat resistance as well as long tool life.
• Packaging: supplied in packs of 10 pcs (sales quantity 10).

Explanatory note: The stated properties (e.g., cross grinding and TiN coating) are provided by the manufacturer and describe the drill bit's condition in relation to hole quality, concentricity, and wear resistance.

Documentation

For technical details and the original product sheet, please refer to the manufacturer's data sheet: See data sheet from the manufacturer

Specifications

• Item no.: 60225146
• Brand: DIESELLA
• Product type: Twist drill bit
• Standard: DIN 338 N
• Material: HSS-TiN
• Cutting diameter: 4.20 mm
• Flute length: 43 mm
• Total length: 75 mm
• Shank: cylindrical
• Number of cutting edges: 2
• Point angle: 118°
• Cross-ground according to DIN 1412C
• Coating: TiN (specified as improved wear and heat resistance, long tool life)
• Packaging: 10 pcs
• Barcode: 5708004011194
• Customs tariff: 8207509000
• Gross weight: 0.010 kg
• Net weight: 0.010 kg

The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
