Product Description

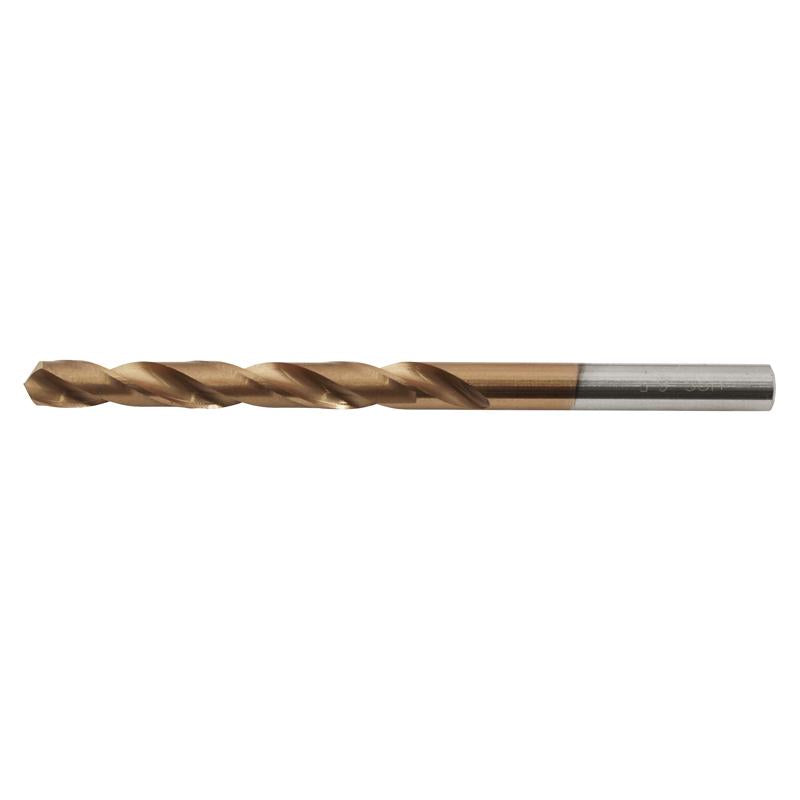

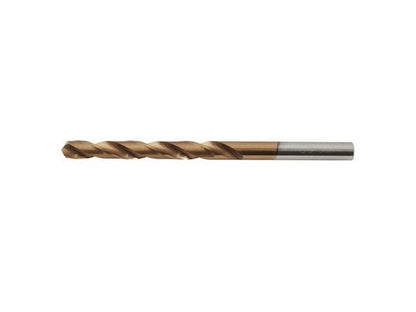

The HSS-TiN Twist Drill 2.10 mm Type N DIN 338 is a cylindrical ground HSS drill bit with TiN coating, specified to DIN 338 N. The product is designated by the manufacturer DIESELLA under item no. 60225046 and is supplied in packs of 10 units.
Design and features
- Cylindrical shank.
- Two cutting edges (Z 2) and split point ground according to DIN 1412C.

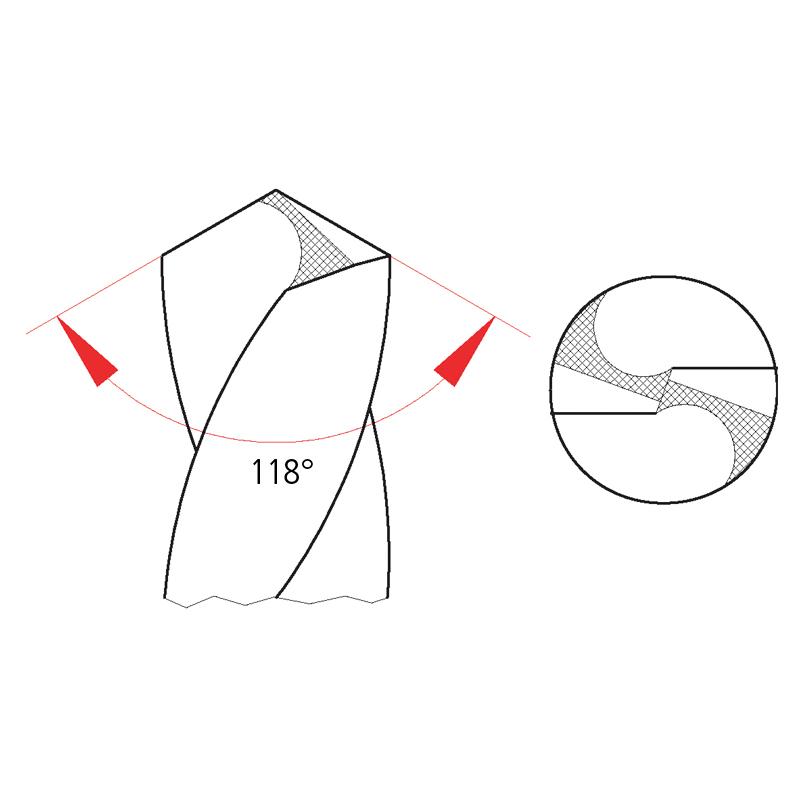

- Point angle 118°; self-centring.
- Material: HSS-TiN (TiN coating), specified for improved service life and increased wear and heat resistance.
- Specified long service life and high concentricity, as well as fine hole quality.
Dimensions and packaging
- Overall length: 49 mm.
- Cutting length: 24 mm.
- Diameter: 2.10 mm (as stated in product name).
- Packaging: 10 units per sales unit. Barcode: 5708004040194.
Technical reference
The manufacturer's documentation describes the split point grinding (DIN 1412C) and the specified standard DIN 338 N. For technical details and original product sheet, please refer to the manufacturer's datasheet below.
See datasheet from manufacturer
Specifications
- Item no.: 60225046
- Product name: HSS-TiN Twist Drill 2.10 mm Type N DIN 338
- Material: HSS-TiN
- Standard: DIN 338 N
- Shank: Cylindrical
- Number of cutting edges: Z 2
- Point angle: 118°
- Overall length: 49 mm
- Cutting length: 24 mm
- Packaging: 10 units
- Barcode: 5708004040194
- Manufacturer: DIESELLA
