Product Overview
This mobile voltage detector BO-A AC/DC from HORSTMANN is a two-pole voltage tester for overhead lines on electric railways. The device detects both AC and DC residual voltages and automatically recognizes whether the network is AC or DC. Indication is provided by optical and acoustic signals upon contact with a live conductor.
Function and Construction
- Two-pole voltage tester designed for use on overhead lines.
- Detects AC and DC residual voltages and automatically switches operating mode between AC and DC.

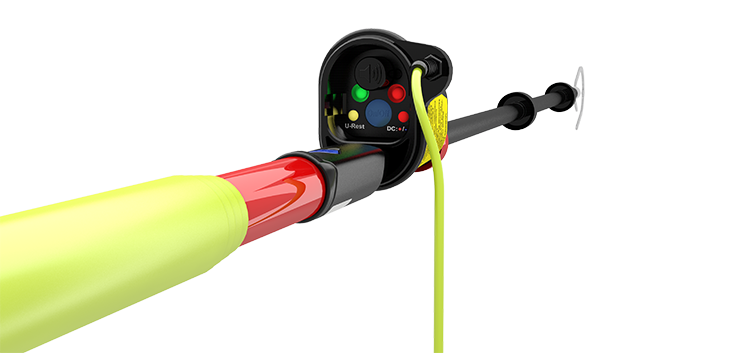

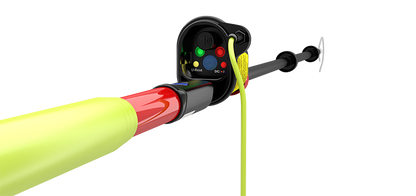

- Provides both visual and auditory signals upon detection of voltage.
- Available in 1000–3000 V version with telescopic rod and plug-in adapter.
Documentation
Further technical information and operating instructions can be found in the manufacturer's documentation.
Typical Applications
The BO-A AC/DC is designed for voltage testing on overhead lines in electric railway systems. Briefly described, the product is used to determine the presence or absence of voltage on overhead lines in networks such as trams and electric buses, as its design and trigger level are tailored for these networks.
Specifications
- Product name: BO-A AC/DC
- Manufacturer: HORSTMANN
- Item number: 50-1600-204 (1000–3000 V version)
- Detected voltage types: AC and DC (automatic recognition)
- Signals: Optical and acoustic indication upon voltage detection
- Standards/tests: Designed and tested in accordance with IEC 61243-1, -2 and DIN VDE 0681-6
- Periodic inspection: Subject to retesting every 6 years in accordance with DGUV Rule 3

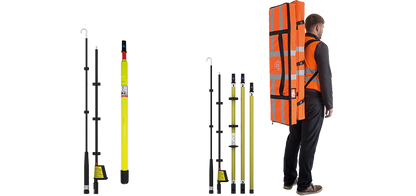

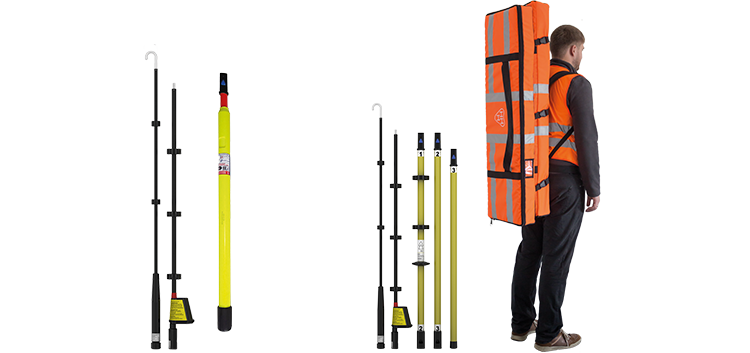

- Delivery: Includes telescopic rod and plug-in adapter with a total length of 4,700 mm
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
