AMPROBE 4312508

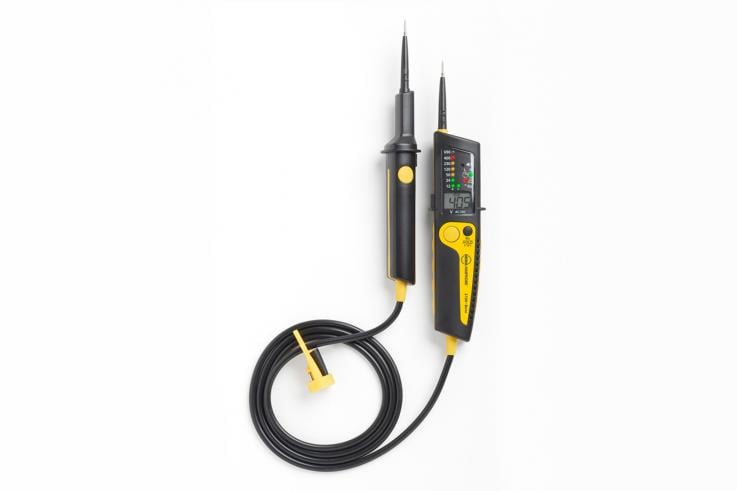

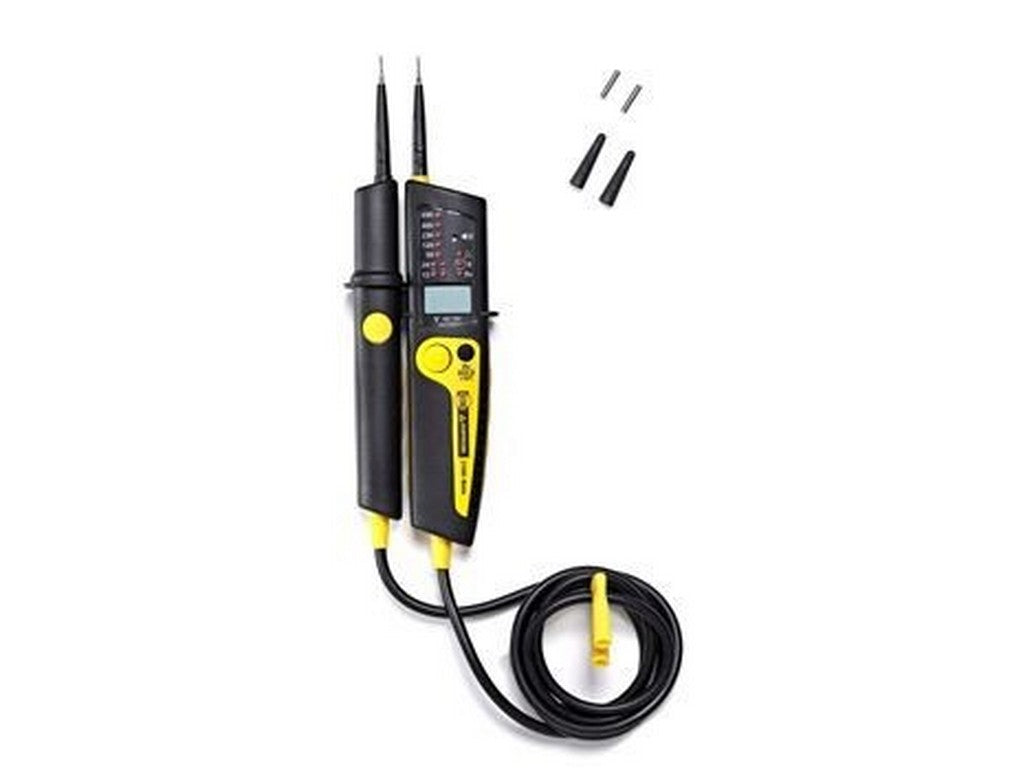

The AMPROBE 4312508 is a two-pole voltage tester for checking voltage and continuity in electrical installations. It is used when you quickly want to see if there is voltage in a system and at the same time get a clear display on both LED and LCD. This makes it practical in daily work where you not only need to measure but also understand what is happening in the installation.
The model measures on LCD from 6 to 690 V AC/DC, while the LED display covers 12 to 690 V AC/DC. It also has features such as continuity testing, phase sequence indication, single-pole phase test, backlight, torch for the measurement area, and data hold. These functions are especially useful when working in control panels, during troubleshooting, or in other situations where you need to read the result quickly and safely.
The voltage tester is rated CAT IV 600 V and CAT III 690 V and has an IP64 enclosure rating, making it protected against dust and splashes. This makes it suitable for demanding environments where tools need to withstand more than the ordinary. According to the manufacturer's documentation, it is built according to EN 61243-3:2014 and is GS-approved.
It comes with automatic AC/DC detection and polarity indication, and for voltages above 50 V AC and 120 V DC, an audible signal is also provided. This helps the user get a quick and clear indication, even when working in environments with limited light or many simultaneous tasks.
See datasheet from the manufacturer
Typical applications
- Voltage check in electrical installations
- Continuity testing for troubleshooting
- Phase sequence control
- Single-pole phase test in control panels and installations
Specifications
- Manufacturer: AMPROBE
- Item number: 4312508
- Voltage range on LCD: 6…690 V AC/DC
- Voltage range on LED: 12…690 V AC/DC
- Safety category: CAT IV 600 V / CAT III 690 V
- Enclosure rating: IP64
- Functions: continuity test, phase sequence indication, single-pole phase test, backlight, torch/measurement-area illumination, data hold
- Standard: EN 61243-3:2014
- GS-approved
