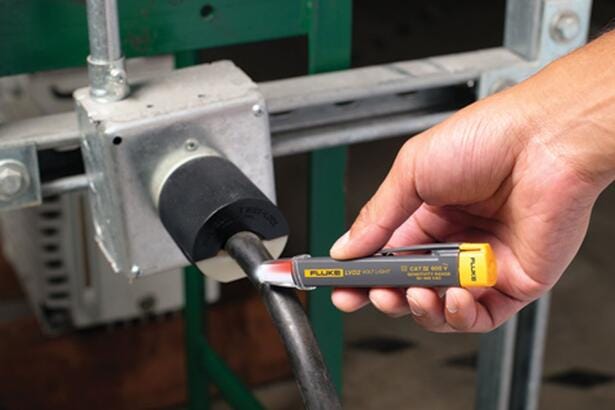

Fluke LVD2 Non-Contact Voltage Tester
The Fluke LVD2 is a pen-shaped non-contact AC voltage tester with a built-in LED flashlight. The device detects AC voltages in the range of 90–600 V and uses dual sensitivity for visual indication. Product identity and features are documented on the manufacturer's product page.
Features
- Pen-shaped non-contact voltage tester with LED light.
- Detection range: 90–600 V AC.
- Dual-sensitivity visual indication: changes to blue at approximately 1–5 inches (2.54–12.7 cm) from a source and to red at the source itself.
- Safety rating: CAT IV 600 V.
- Operating temperature: 0°C to 50°C.
- Power supply: 1 × AAA battery (included).
Typical Applications
Description of verified applications from manufacturer information:
- Determining the presence of AC voltage in neutral and hotlines (detection of neutral and hotlines).
- Quick non-contact check of AC voltage in the voltage range 90–600 V.
- Use in commercial and industrial applications, as specified by the manufacturer.
Documentation
Official product information can be found on the manufacturer's product page. For further visual demonstration: Watch product video from the manufacturer
Specifications
- Product: Fluke LVD2 Non-Contact Voltage Tester.
- Manufacturer: FLUKE.
- Manufacturer's part number: 2740300.
- Detection range: 90–600 V AC.
- Dual-sensitivity indication: blue at ~1–5 inches (2.54–12.7 cm), red at the source.
- Safety rating: CAT IV 600 V.
- Operating temperature: 0°C to 50°C.
- Power supply: 1 × AAA battery (included).
- Form factor: pen-shaped non-contact tester with LED flashlight.
- Source: Manufacturer's product page.
