Three-phase energy logger
The Fluke-1732/EUS (Part# 4706548) is a three-phase electrical energy logger designed for energy, load, and basic power measurements. The instrument captures and logs voltage, current, power, power factor, and energy, as well as associated values for energy studies and load surveys.Functions and design
- Records RMS voltage, RMS current, frequency, THD (voltage and current), active power, reactive power, power factor, and energy.

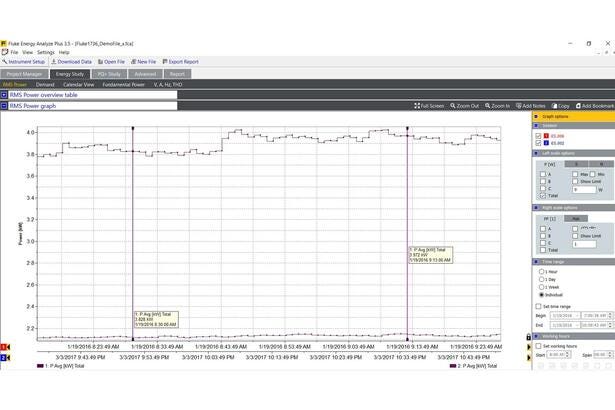

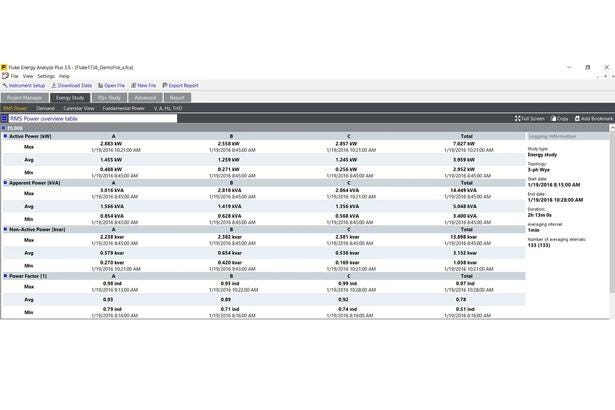

- The EU/US kit (Part# 4706548) includes three 12 in. i17xx-flex 1500 flexible current probes (1–150 A / 10–1500 A) and Energy Analyze Plus software.
- Safety categories: 600 V CAT IV / 1000 V CAT III for use at service entrances and downstream.
- Color touch display (4.3"), internal flash memory, and support for data transfer via USB and WiFi/Fluke Connect where relevant for the model.
Typical applications
- Used for energy studies where voltage, current, power, power factor, and accumulated energy need to be recorded over time.
- Used for load surveys and load studies to determine loads and peak demand (e.g., NEC 220-relevant studies described in the manufacturer's documentation).

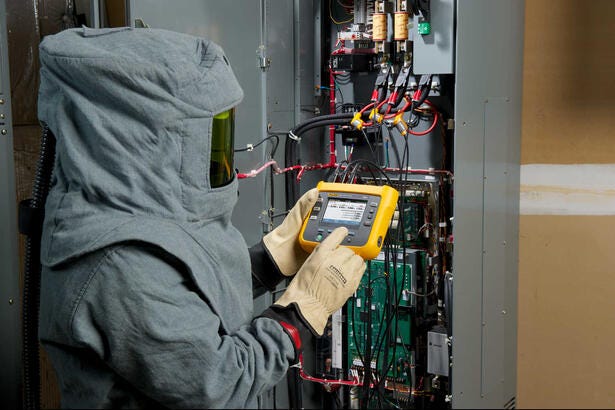

- Suitable for comparing measurements at the main supply and downstream points for verification of supply billing and load distribution.
- Ability to log related analog measurements via Fluke Connect modules (up to two modules depending on model/accessories) for correlation between process variables and energy.
Documentation
See the manufacturer's technical datasheet for complete measurement and technical information:
See datasheet from manufacturer
Specifications
- Model: Fluke-1732/EUS (Part# 4706548)
- Primary measurement parameters: Voltage, current, power, power factor, energy, THD, frequency
- Included accessories: 3 x i17xx-flex 1500 12" flexible current probes and Energy Analyze Plus software
- Safety classification: 600 V CAT IV / 1000 V CAT III
- Sampling: 16-bit synchronous sampling, 10.24 kHz synchronized to mains frequency
- Memory: Typically 10 logging sessions of 8 weeks at 1-minute intervals (internal flash)
- Power supply: Li-ion 3.7 V, 9.25 Wh (replaceable), battery life up to 4 hours (up to 5.5 hours in power-saving mode)

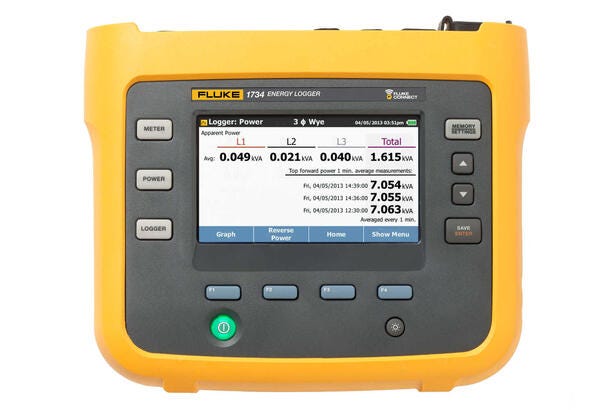

- Display: 4.3" color TFT touch
- Dimensions: 19.8 cm x 16.7 cm x 5.5 cm (instrument)
- Weight: Instrument 1.1 kg
