Voltage etc. energy logger 3-fa w/software and clamps CATIV 600V/CATIII 1000V

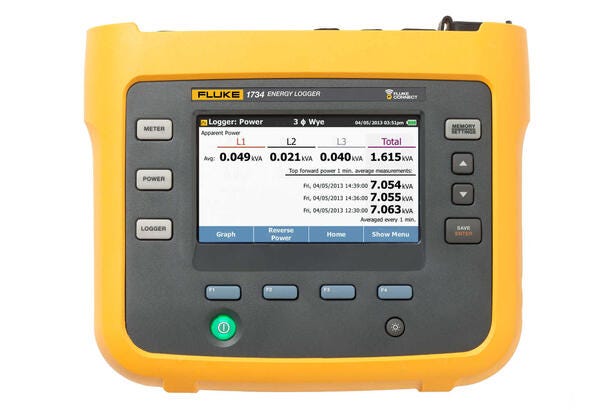

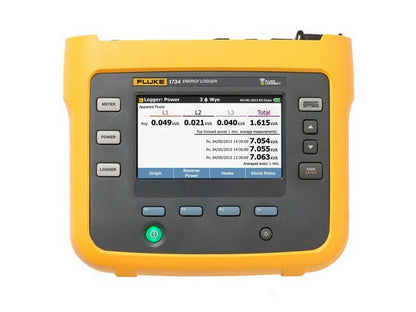

Fluke 1734/EUS – Three-Phase Energy Logger

Overview

The Fluke 1734/EUS is a three-phase electrical energy logger from Fluke (Fluke 1732/1734 product family). The instrument automatically captures and logs voltage, current, power, power factor, and energy. The Fluke 1734/EUS is supplied as a complete measurement kit with accessories and supports both local and remote access to logged data.

Features and Contents

• Measurement parameters: RMS voltage, RMS current, power, power factor, energy, and associated values (automated logging).
• Included in the kit: three 12" 1,500 A flexible current probes (i17xx-flex 1500 12”), voltage measurement leads, WiFi/BLE adapter, and Energy Analyze Plus software.
• Safety rating: 600 V CAT IV and 1000 V CAT III for service entrance and downstream circuits.

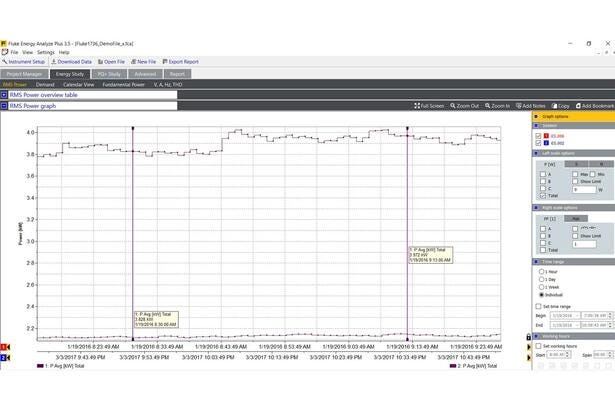

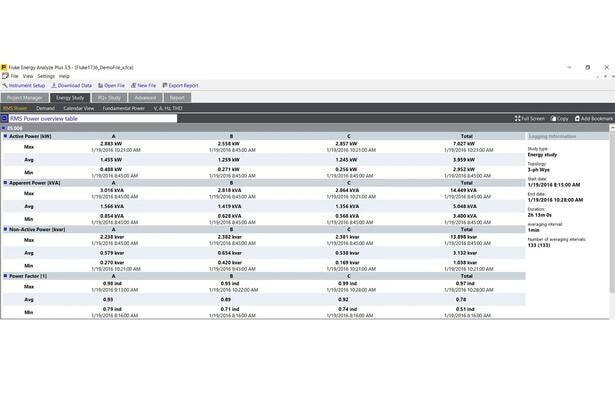

• Data access: download via USB flash drive or viewing/remote access via Fluke Connect mobile app and desktop software.

Documentation

Please refer to the manufacturer's technical documentation for complete measurement parameters, accuracies, and additional information: View datasheet from manufacturer

Typical Applications

• Load studies: Used for load studies, including determining load and capacity over defined time intervals (e.g., recommended load study periods mentioned in the documentation).
• Energy assessments: Used for quantifying energy consumption before and after improvements using logged energy data.

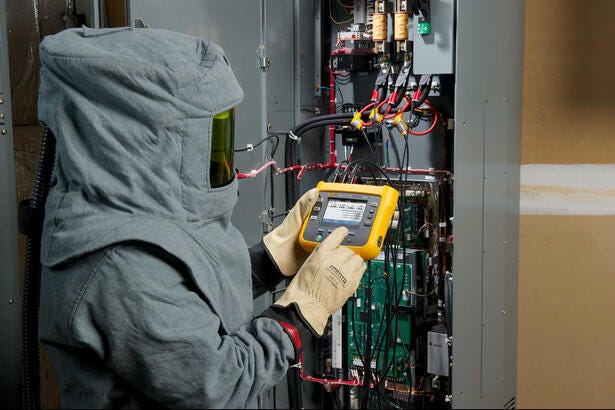

• Energy surveys: Used for measurements at service entrance and downstream points to compare measurements with meter readings and build an energy profile image.
• Logging of related analog measurements: Supports logging of analog parameters alongside power/energy via up to two Fluke Connect wireless modules.

Specifications

• Manufacturer: FLUKE
• Model: Fluke 1734/EUS (Fluke 1732/1734 product family)
• Measured parameters: voltage, current, power, power factor, energy (automatic logging)
• Included accessories: 3 x 12" 1,500 A flexible current probes, voltage leads, WiFi/BLE adapter, Energy Analyze Plus software
• Safety: 600 V CAT IV / 1000 V CAT III
• Data transfer: USB flash drive; Fluke Connect mobile app and desktop software

Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
