SGT-CS507 – intelligent high-precision torque/angle transducer servo screwdriver
The SGT-CS507 is an intelligent high-precision torque/angle transducer servo screwdriver from KILEWS (SGT-CS series). The description and manufacturer's product page state the units' core operating characteristics and compatibility without additional assumptions.
Technical overview
- Operating voltage: DC40 (stated by the manufacturer).
- Torque range: 0.88–7 N·m.
- No-load speed: 660–60 r.p.m.
- Rated power: 90 W.
- Length: 307 mm.
- Weight: 900 g.
- Suitable bits: B 9.5 bit type.
- Compatible power controller: KL-GTCS series (stated as compatible power controller).
- Torque accuracy: 3σ, 5%.
- Markings: ESD, CE and RoHS (shown on the manufacturer's product page).
- Further reference from the manufacturer's specification table: Cmk value >1.67 at (±10%), ISO 5393.

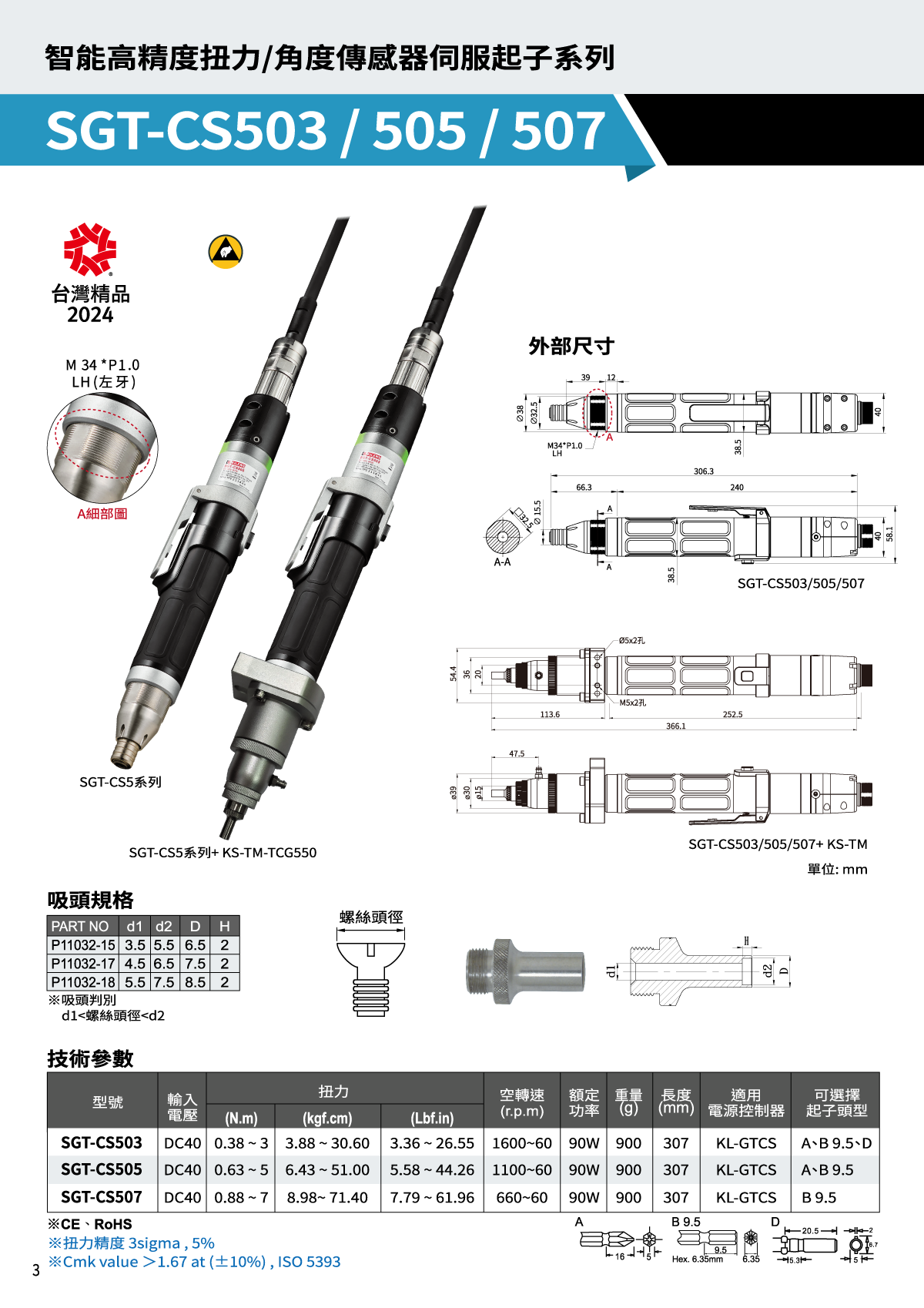

The manufacturer's official product page contains the original specification table and additional technical figures. For detailed reference to the manufacturer's own documentation: See datasheet from manufacturer.
Specifications
- Product: SGT-CS507.
- Manufacturer: KILEWS.
- Input voltage: DC40.
- Torque range: 0.88–7 N·m.
- No-load speed: 660–60 r.p.m.
- Rated power: 90 W.
- Weight: 900 g.
- Length: 307 mm.
- Bit type: B 9.5.
- Compatible controller: KL-GTCS series.
- Torque accuracy: 3σ, 5%.
- Additional quality data: Cmk >1.67 at ±10% (ISO 5393).
- Markings: ESD, CE, RoHS (shown on manufacturer's page).
