Product Overview

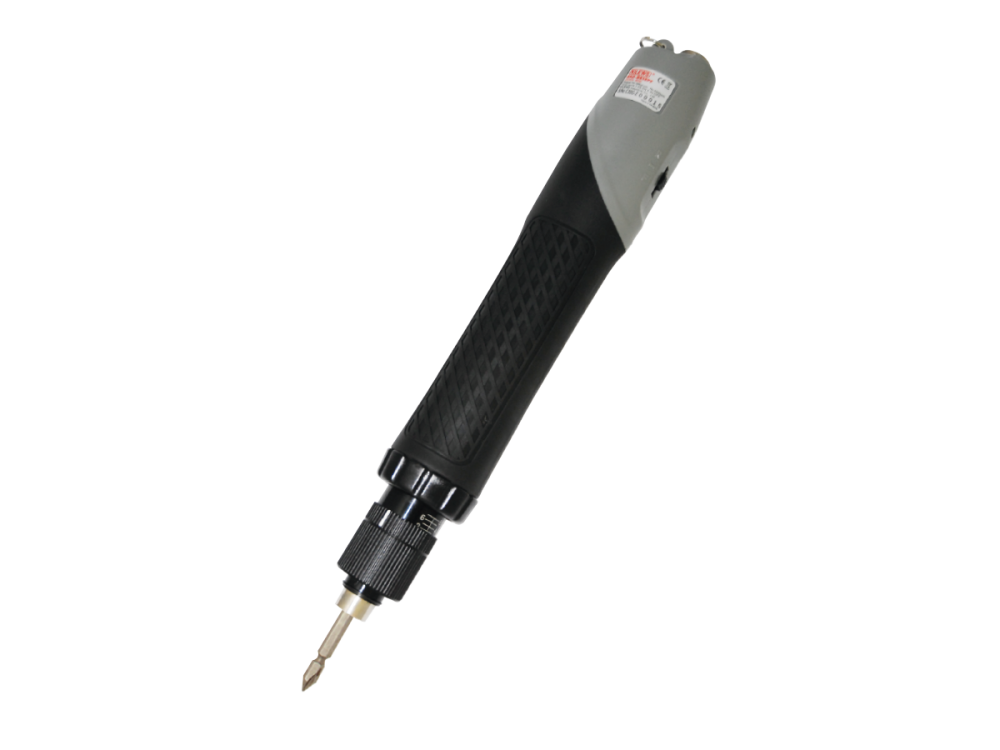

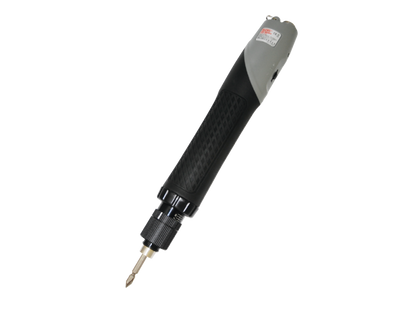

This brushless DC automatic screwdriver SKD-BN830PF from KILEWS is a model in the SKD-BN800P series designed for precision assembly of threaded fasteners. The description below is based on the manufacturer's information and the official operation and maintenance manual.
Function and Performance

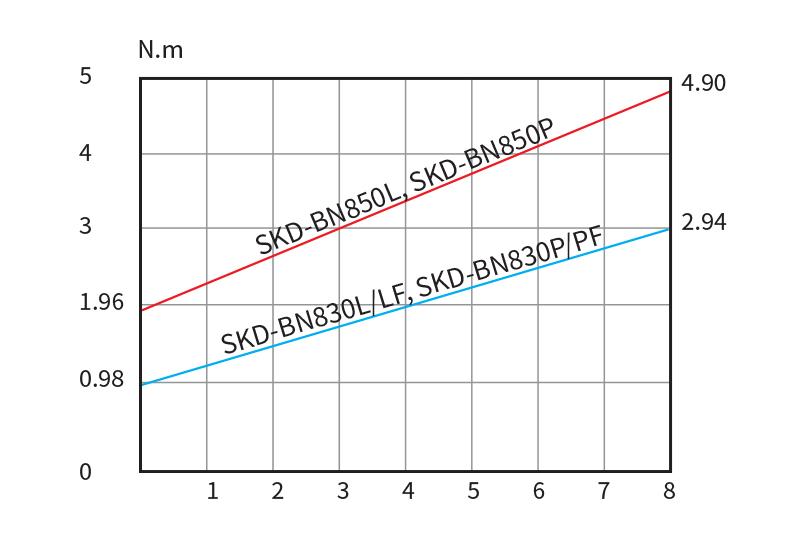

- Torque range for hard joints: 0.98–2.94 N·m.
- Torque range for soft joints: 0.98–2.35 N·m.
- Repeatable torque accuracy: ±3%.
- Free rotation speed (HI): 2000 rpm.
- Operating voltage: DC 40V; rated power consumption: 90W.
- Compatible with SKP-40B-HL power controller.
Documentation
See the manufacturer's official manual for detailed operation, safety, and maintenance instructions:
See datasheet from the manufacturer
Typical Applications
According to the manufacturer's manual, Metal Assembly Screwdrivers such as the SKD-BN830PF are intended for installing threaded screws in light industrial and appliance manufacturing applications. The description is taken directly from the manufacturer's documentation.
Usage and Maintenance Notes
- Original operating frequency: 1 sec. ON / 3 sec. OFF (default setting); approx. 15 screws per cycle at this setting.
- The tool is specified for an intended duty cycle of 2.0 sec. ON / 5.0 sec. OFF.
- The manual recommends regular inspection, maintenance, and periodic testing of grounding for ESD and safety requirements.
Specifications
- Model: SKD-BN830PF (KILEWS, SKD-BN800P series).
- Torque range (hard joints): 0.98–2.94 N·m.
- Torque range (soft joints): 0.98–2.35 N·m.
- Repeatable torque accuracy: ±3%.
- Free rotation speed (HI): 2000 rpm.
- Operating voltage: DC 40V.
- Power consumption: 90W.
- Compatible controller: SKP-40B-HL.
- Weight: 836 g.

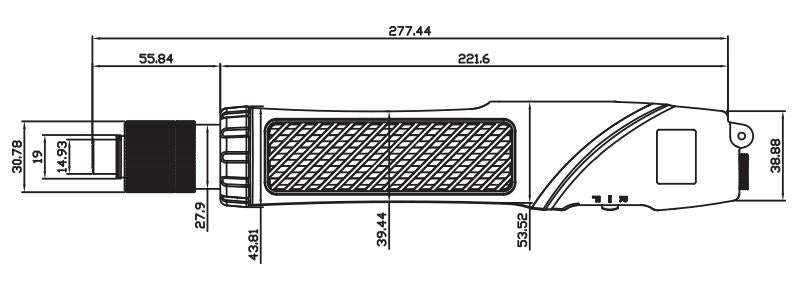

- Length: 278 mm.
- Applicable bits: Type A and B.
- Sound level: LpA 53.6 dB(A), LwA 64.6 dB(A).
- Vibration value: ah = 0.17 m/s² (U = 0.02 m/s²).
