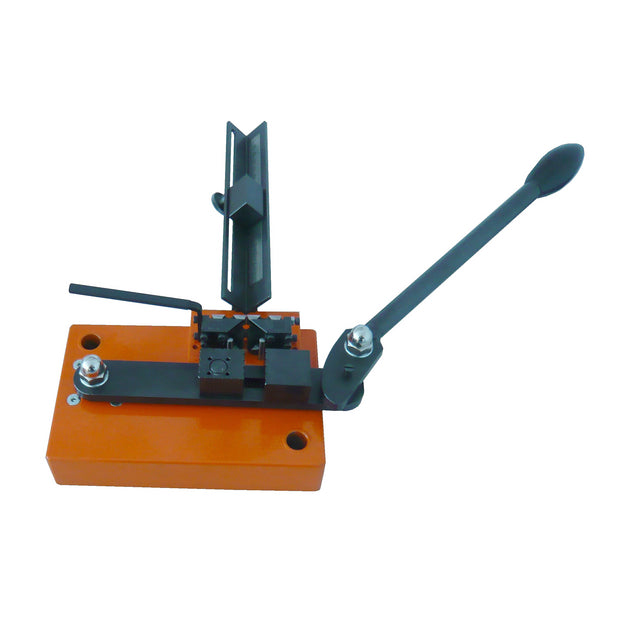

Simplex S — manually operated stripping tool for bench mounting
The Simplex S is a manual lever apparatus for bench mounting designed for stripping cables and conductors (strands) up to 15 mm in diameter. The unit operates mechanically and provides approximately 150 mm of stripping length per stroke. Operation involves inserting the cable into a pair of knives, clamping it with the lifting arm and pressure bar, and then pulling out the conductors, with the length set by a length stop.
Function and operation
- Place the cable in the knife pair and push it forward to the length stop.
- Operating with the handle: the pressure block presses against the cable, the knife pair closes and cuts the cable's sheath, after which the conductors are pulled out.
- Knives and knife jaws are placed in the square holders (removable configuration described in the manufacturer's documentation).
Typical applications
The product is used for stripping cables and conductors/strands with a maximum diameter of 15 mm and to achieve stripping lengths of approx. 150 mm per stroke, as specified by the manufacturer.
Documentation
Further technical details and manufacturer information can be found in the official data sheet:
See data sheet from the manufacturer
Specifications
- Product name: Simplex S
- Manufacturer: SIMPLEX
- Mounting type: bench mounting (manual lever device for bench mounting)
- Function: stripping machine for cables and strands
- Material diameter, max.: 15 mm
- Stripping length per stroke: approx. 150 mm
- Standard knives (sizes): 2/3/4/5 mm; 2.5/3.5/4.5/5.5 mm; 6/7/8/9 mm; 6.5/7.5/8.5/9.5 mm; 10/11 mm; 12/13 mm
- Knife format: 24 x 24 x 4 mm
- Flat "S" knife: without cut-out (suitable for very thin conductors according to the manufacturer)
- Weight: 2.3 kg
