Product Overview

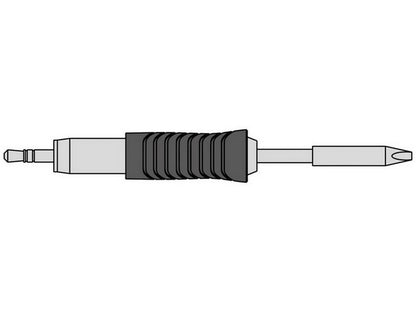

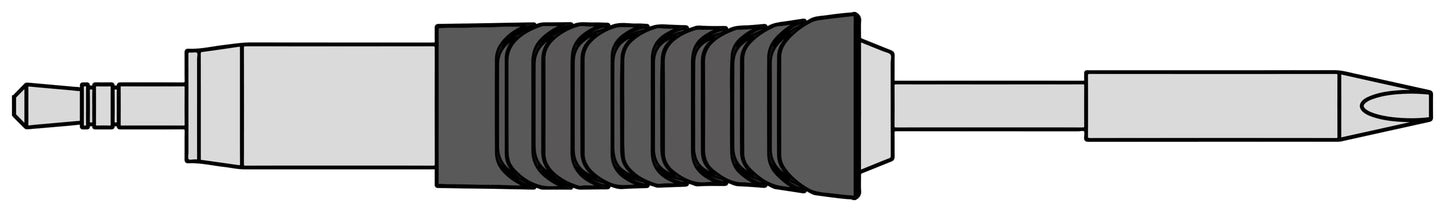

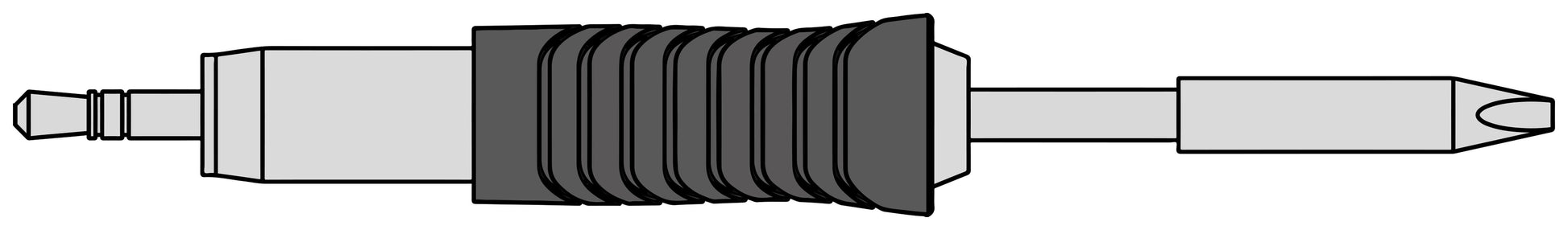

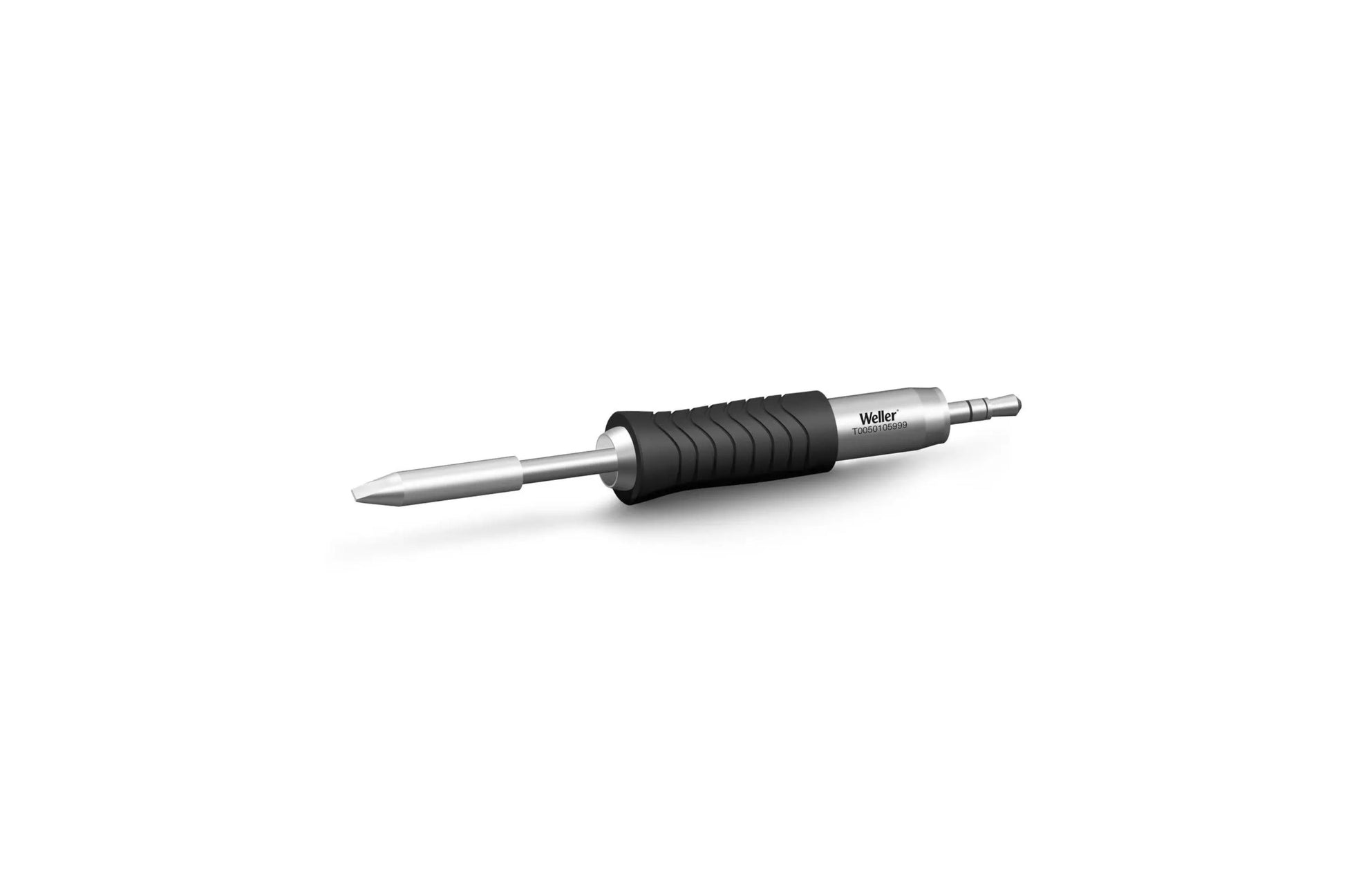

This soldering tip from Weller is the RTU 022 S MS, an RT Ultra active chisel-type soldering tip designed for heavier soldering tasks and large components. The product is specified as MIL-SPEC/IPC and indicates ESD safety as well as compatibility with WXUP-MS soldering irons.Description
The RTU 022 S MS features a chisel tip with dimensions of Ø 2.2 mm × 0.6 mm and is constructed as a high-performance RT Ultra tip with Thermal Core Technology for optimized heat transfer. It is rated for a power capacity of 150 W and has a length of 1.1 in. The tip type is listed as MS WX and the tip finder size range is 2.0 - 3.0 mm.Documentation
For technical details and manufacturer material, please refer to Weller's official datasheet: View datasheet from manufacturer.Typical Applications
Applications and purposes, as specified by the manufacturer, include:- LED soldering
- Solar technology
- Electronic components
- Multi-layer boards
- Large heat sinks
- High-frequency PCBs with large dissipators
Specifications
- Product Name: RTU 022 S MS
- Manufacturer: WELLER
- Part Number: T0050105999
- Tip Shape: Chisel

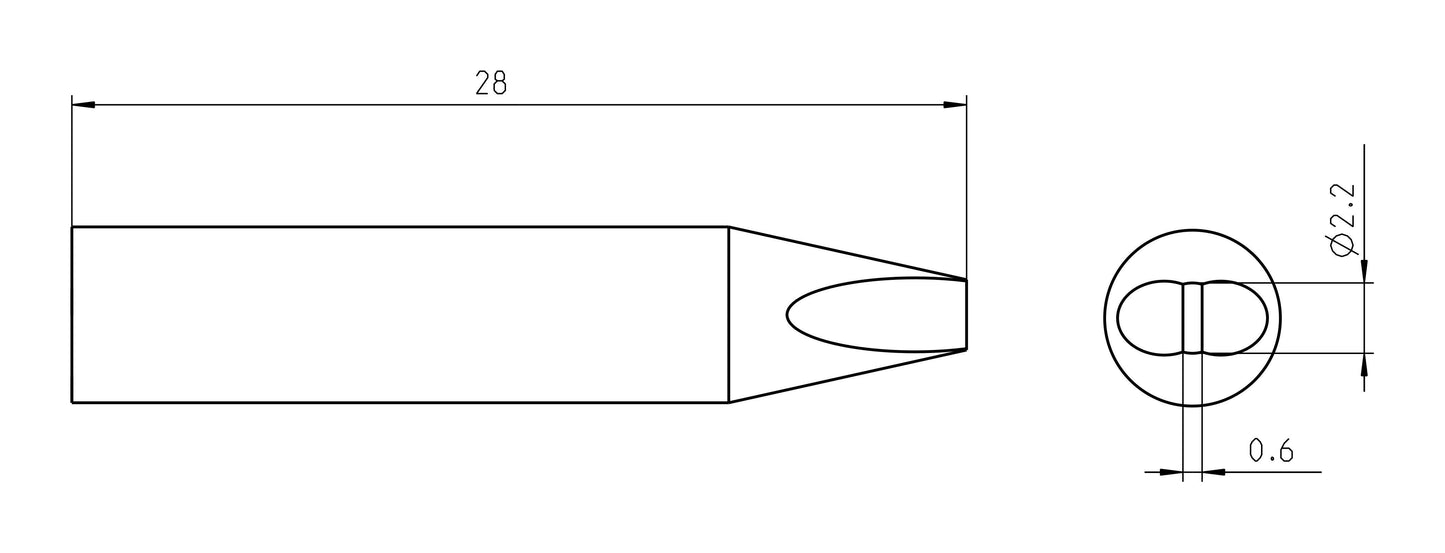

- Tip Dimension: Ø 2.2 mm × 0.6 mm
- Length: 1.1 in
- Power: 150 W
- ESD Safe: Yes
- Mil-Spec / IPC: Yes
- Tip type: MS WX
- Tip finder size: 2.0 - 3.0 mm
- Compatibility: Works With WXUP-MS
- Product Family: RT Ultra Active Soldering Tips
- Quantity per package: 1
Sources
- Weller manufacturer datasheet: View datasheet from manufacturer
