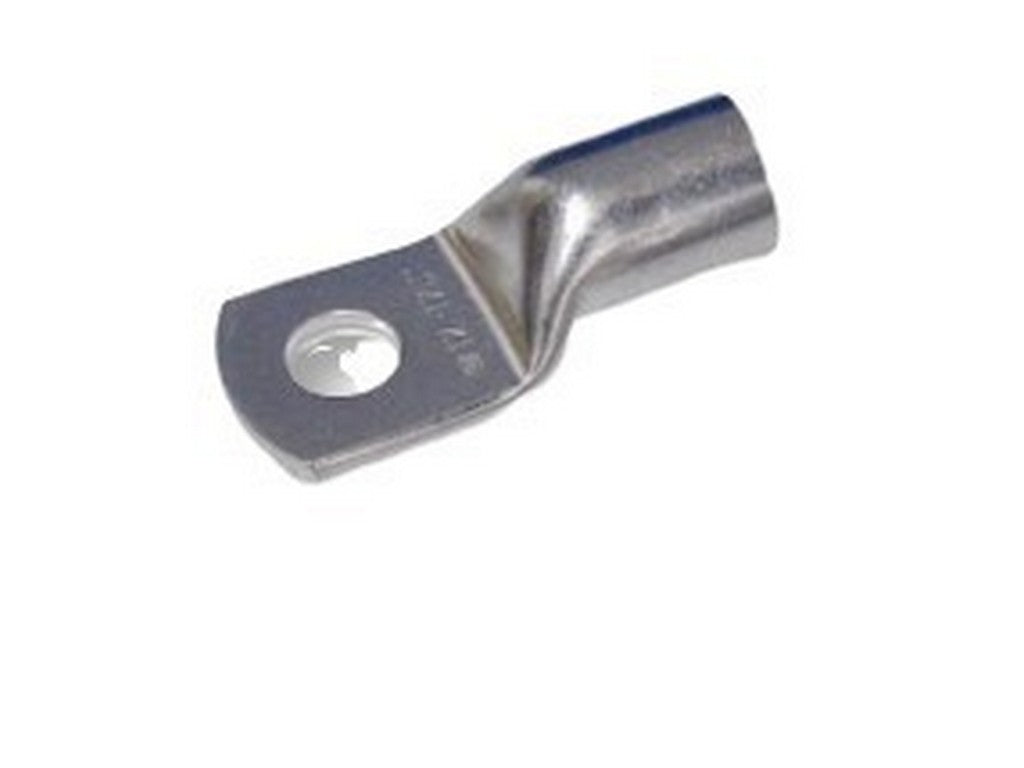

Tubular cable lug ICR66
ICR66 is listed in Intercable Tools' R-series of tubular cable lugs. The product is specified with a nominal cross-section of 6 mm² and a connection screw size M6. The table from Intercable also provides dimensions and packaging size, which are included below.
Technical overview
- Product name: ICR66
- Nominal cross-section: 6 mm²
- Connection wire/screw size: M6
Typical applications
ICR66 is suitable for terminating the conductor types specified in the manufacturer's R-series:
- Stranded, fine-stranded, compacted stranded conductors
- Solid round or sector conductors
- Applicable conductor cross-sections in the R-series: 0.75–16 mm²
The above applications are directly derived from Intercable Tools' product table for the R-series.
Documentation
Further technical information and a full product overview can be found in Intercable Tools' catalog. See datasheet from the manufacturer
Specifications
- Manufacturer's part number: ICR66
- Nominal cross-section: 6 mm²
- Connection tube/screw: M6
- Dimensions: d1 = 3 mm, d3 = 6 mm, D2 = 6 mm, B = 11 mm, L = 21 mm, A = 9 mm (specified in the product table)
- Net weight: 0.54 kg per 100 pcs. (specified in the product table)
- Suitable for conductors: 0.75–16 mm² (stranded, fine-stranded, compacted stranded, solid round or sector conductors)
- Package size: shown as 50 pcs. in the product table
- R-series: specified in Intercable Tools' product table as R-series tubular cable lugs
Sources:
- Intercable Tools, General Catalog: https://www.intercable.tools/fileadmin/user_upload/kataloge/24_111113_General_Catalog_24.1_1.pdf
