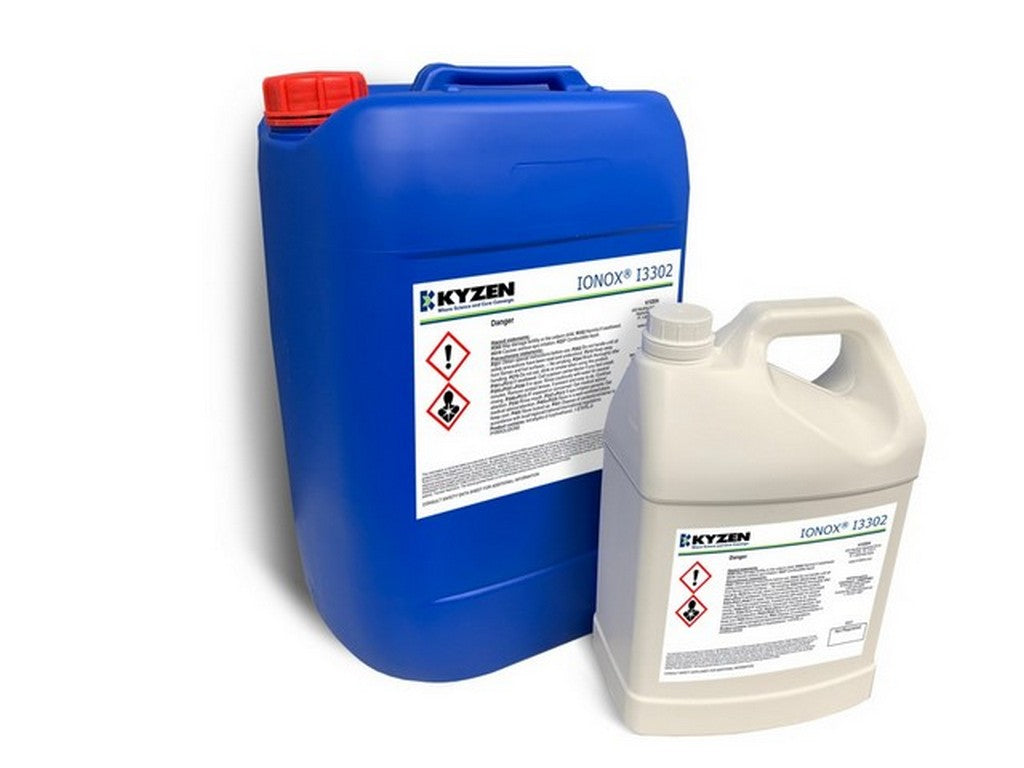

This semi-aqueous cleaner from KYZEN: IONOX I3302
IONOX I3302 is a semi-aqueous cleaner from KYZEN designed for the removal of SMT Pb-free solder paste and tacky flux paste residues. The product's function and process parameters are documented by the manufacturer and are described here without interpretation.
Documentation
Technical information and process recommendations can be found in the manufacturer's product bulletin. See manufacturer's datasheet
Typical applications
- Removal of SMT Pb-free solder paste and tacky flux paste residues.
- Use for Sn/Bi solder paste formulations (indicated as safe and effective for these formulations).
- Removal of baked-on flux residues from lead frames, packages, and high-lead alloys.
- For use in semi-aqueous centrifugal, spray-under-immersion, ultrasonic, and mega-sonic cleaning systems; must be followed by rinsing with DI water or IPA.
Process and handling
IONOX I3302 is stated as completely water-soluble, biodegradable, and not classified as hazardous in the manufacturer's documentation. The manufacturer specifies the following typical process parameters and handling information:
- Application concentration: 100% (typical process parameter specified by the manufacturer)
- Temperature during process: <140°F / 60°C
- Flash point (drying/evaporation reference): 180°F / 82°C
- Boiling point: 302°F / 150°C
- Rinsing agents: DI water or IPA
- Drying: hot air; the manufacturer specifies 180°F / 82°C as reference
- Storage: original container at 5–50°C (41–122°F)
- Shelf life: 5 years in sealed containers of 5 gallons / 25 liters or more
Environmental and safety information
The manufacturer states that IONOX I3302 is RoHS compliant and halogen-free in accordance with RoHS Directive (EU) 2015/863 and EN 14582:2016. Further safety information and classifications can be found in the manufacturer's Safety Data Sheet (SDS).
Specifications
- Product name: IONOX I3302
- Manufacturer: KYZEN
- Product type: Semi-aqueous cleaner
- Water solubility: Complete
- Recommended concentration: 100%
- Recommended process temperature: <140°F / 60°C
- Flash point: 180°F / 82°C
- Boiling point: 302°F / 150°C
- Rinsing agents: DI water or IPA
- Storage temperature: 5–50°C (41–122°F)
- Shelf life: 5 years in sealed containers (≥5 gallons / 25 liters)
- RoHS/halogen: RoHS compliant and halogen-free (EU 2015/863; EN 14582:2016)
The content is generated using AI – subject to errors.
Contact HIN for further information about the product.
