Product Overview

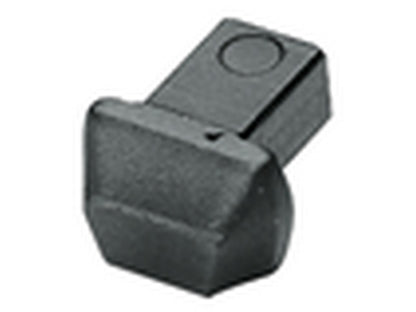

The Rectangular weld-on fitting SE 9x12 (GEDORE code 7698190 / 7912-00) is a rectangular weld-on fitting with a 9 x 12 mm rectangular drive connector. The fitting is specified and listed on GEDORE's product page and is supplied as a single unit (quantity: 1 pc.).
Design and Material
- Drive connector: rectangular, 9 x 12 mm.
- Material: Chrome-vanadium steel 31CrV3.
- Overall length: 14 mm.
- Net weight: 0.029 kg.
Dimensions
- Head width: 19 mm.
- Head height: 14.5 mm.
- Depth gauge: 8.0 mm.
Typical Applications
Used to solve difficult joining tasks where a weld-on fitting with a rectangular drive connector is required. (Information directly from the manufacturer's product page.)
Documentation
Product information and technical data have been verified on the manufacturer's official product page: Product page at GEDORE.
Specifications
- Product name: Rectangular weld-on fitting SE 9x12 (GEDORE code 7698190 / 7912-00).
- Manufacturer: GEDORE.
- Material: Chrome-vanadium steel 31CrV3.
- Drive connector: rectangular 9 x 12 mm.
- Overall length: 14 mm.
- Head width: 19 mm.
- Head height: 14.5 mm.
- Depth gauge: 8.0 mm.
- Weight (net): 0.029 kg.
- Manufacturer part number / Code no.: 7698190 / 7912-00.
- EAN: 4002805792001.
