Product Overview

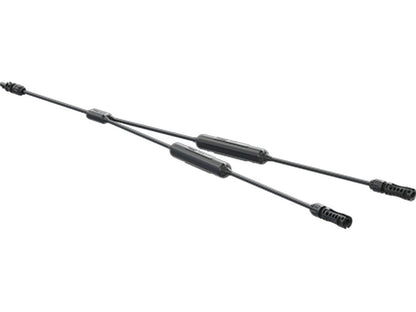

Stäubli 32.0394 is an MC4-Evo 2 Y-splitter with an integrated in-line fuse (PV-K-SPL-Y/2-ILF3-30/6/E-SSP). The product is supplied as a pre-assembled cable assembly with one plug input and two socket outputs (Plug (1) / Socket (2)). The MC4-Evo 2 Y-splitter is designed for DC connections and contains a 30 A in-line fuse.Technical Characteristics
- Connector system: MC4-Evo 2
- Voltage rating: DC 1500 V
- Fuse: integrated in-line, 30 A (specified in the product designation)
- Cable cross-section: 6 mm²
- Lead/length: 84 cm
- Connector configuration: Plug (1) / Socket (2)
- Protection class, mated: IP65/IP68 (1 m, 1 h)
- Certification: TÜV Rheinland (stated in manufacturer information)
Documentation
Further technical details and manufacturer's product information can be found in the official datasheet. See datasheet from manufacturer
Typical Applications
The Stäubli 32.0394 MC4-Evo 2 Y-splitter with integrated in-line fuse is used for DC connections in PV installations where a single input needs to be split into two outputs with built-in fuse protection. The product's protection rating and TÜV certification indicate that it is intended for interconnection in PV DC strings as described by the manufacturer.
Assembly and Compatibility
The product is supplied as a complete cable assembly (lead length 84 cm) and specifies the use of the MC4-Evo 2 connection system. Only original Stäubli mating connectors should be used, as indicated in the manufacturer's material.
Specifications
- Product name: Stäubli 32.0394 (MC4-Evo 2 Y-splitter with in-line fuse)
- DC voltage: 1500 V
- Fuse: 30 A in-line
- Cable cross-section: 6 mm²
- Lead length: 84 cm
- Connector configuration: Plug (1) / Socket (2)
- Protection rating when mated: IP65/IP68 (1 m, 1 h)
- Certification: TÜV Rheinland
