STAUBLI PV-AZM-410

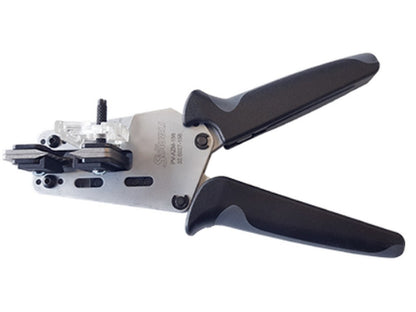

The Stäubli PV-AZM-410 is a manual stripping tool for PV cables. It is used to prepare solar cell wires before assembling Stäubli PV connectors, and it is designed for conductors with cross-sections of 4 mm², 6 mm², and 10 mm².
In practice, it is a hand tool for a very specific task: to strip insulation uniformly and to a fixed length. Therefore, a length stop is built-in, so that stripping can be repeated in the same way from cable to cable. This is an advantage in production, where a consistent result and fewer variations in assembly work are desired.
The tool is supplied with built-in stripping blades and a 2.5 mm hex key. The blades are replaceable, and for the 4/6/10 version, a separate blade set, PV-M-AZM-410, is available.
The PV-AZM-410 is for working on de-energized cables. It must not be used for live working and is not suitable for live working according to IEC 60900. It is therefore a tool for the general, controlled assembly of PV wires in disconnected systems.
If you want the technical documentation from the manufacturer, the datasheet can be opened here: See datasheet from the manufacturer
Typical applications
- Stripping PV conductors before assembling Stäubli PV connectors
- Working with cables of 4 mm², 6 mm², and 10 mm²
- Repetitive tasks where the same stripping length must be maintained from item to item
Specifications
- Manufacturer: STAUBLI
- MPN: 32.6027-410
- Product name: PV-AZM-410
- Manual stripping tool for PV cable
- For conductor cross-sections: 4 mm², 6 mm², and 10 mm²
- Built-in length stop
- Supplied with built-in stripping blades
- Supplied with hex key, 2.5 mm
- Ensure a safe working environment: for de-energized use only
- Not suitable for live working (IEC 60900)
- Replacement blade set: PV-M-AZM-410 (32.6057-410)
