Product Overview

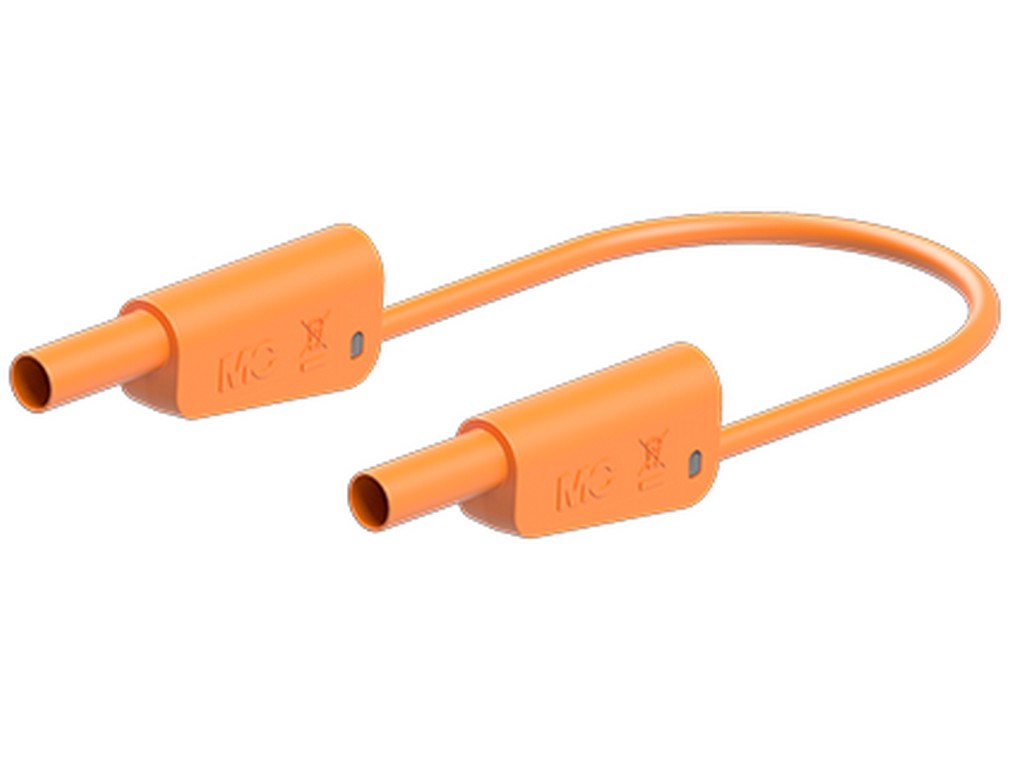

The SLK-4N-F25 from STAUBLI is a test lead (item number 66.2014-*) with stackable Ø 4 mm MULTILAM plugs and rigid insulating sleeves at both ends. The product is designed as a flexible connection for test equipment and measurement setups and is available in several lengths listed in the manufacturer's datasheet.
Materials and Construction
- Ø 4 mm MULTILAM plugs
- Electrical contact with nickel (Ni) surface treatment
- Contact base material: CuZn
- Lead insulation: PVC
- Cross-section: 2.5 mm²
Typical Applications
The SLK-4N-F25 is used as a test lead for electrical measurement and test connections where stackable Ø 4 mm MULTILAM plugs and flexible leads are required. The description is based on the product designation in the manufacturer's datasheet.
Documentation
The manufacturer's datasheet contains details on permissible lengths, electrical ratings, and approvals. For further technical information, please refer to the manufacturer's datasheet:
View datasheet from manufacturerSpecifications
- Product name: SLK-4N-F25 (item number 66.2014-*)
- Manufacturer part number: 66.2014-02530
- Diameter of plug system: 4 mm
- Lead cross-section: 2.5 mm²
- Lead insulation: PVC
- Ratings: 1000 V (CAT II) 32 A / 600 V (CAT III) 32 A
- Surface treatment, electrical contact: Ni
- Base material, electrical contact: CuZn
- Available lengths: 025; 050; 075; 100; 150; 200 cm
- Test accessories according to: IEC EN 61010-031
- Approvals: UL, CE
- Datasheet date: 02.2024
- Manufacturer: STAUBLI
