Product Overview

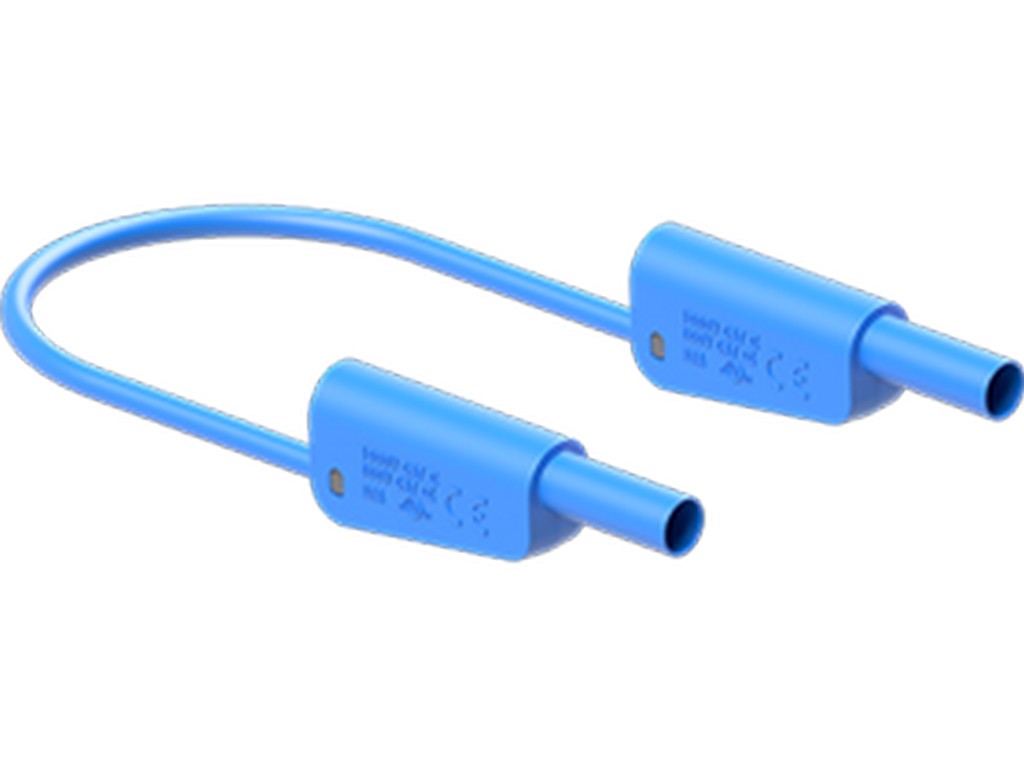

The SLK-4N-F25 from STAUBLI is a test lead (item number 66.2014-02523) with stackable Ø 4 mm MULTILAM plugs and a rigid insulating sleeve at both ends. The product is specified as test accessory in accordance with IEC EN 61010-031 and is approved by UL and CE.
Construction and Materials
- Stackable Ø 4 mm MULTILAM plugs with rigid insulating sleeves at both ends.
- Electrical contacts with nickel plating (Ni) on a CuZn base material.
- Cable with PVC insulation and a conductor cross-section of 2.5 mm².
Documentation
For product data and complete length options, please refer to the manufacturer's datasheet:
View datasheet from manufacturer
Typical Applications
The SLK-4N-F25 is used as a test lead and test accessory for connection with stackable Ø 4 mm MULTILAM plugs. The product's approvals and category information indicate that it is designed for use in measuring and test connections in accordance with IEC EN 61010-031.
Specifications
- Product name: SLK-4N-F25 (item number 66.2014-02523)
- Diameter of plug system: 4 mm
- Conductor cross-section: 2.5 mm²
- Cable insulation: PVC
- Rated values: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Electrical contact — surface treatment: Ni
- Electrical contact — base material: CuZn
- Available in cable lengths: 25; 50; 75; 100; 150; 200 cm
- Specified as test accessory in accordance with IEC EN 61010-031
- Approvals: UL, CE
