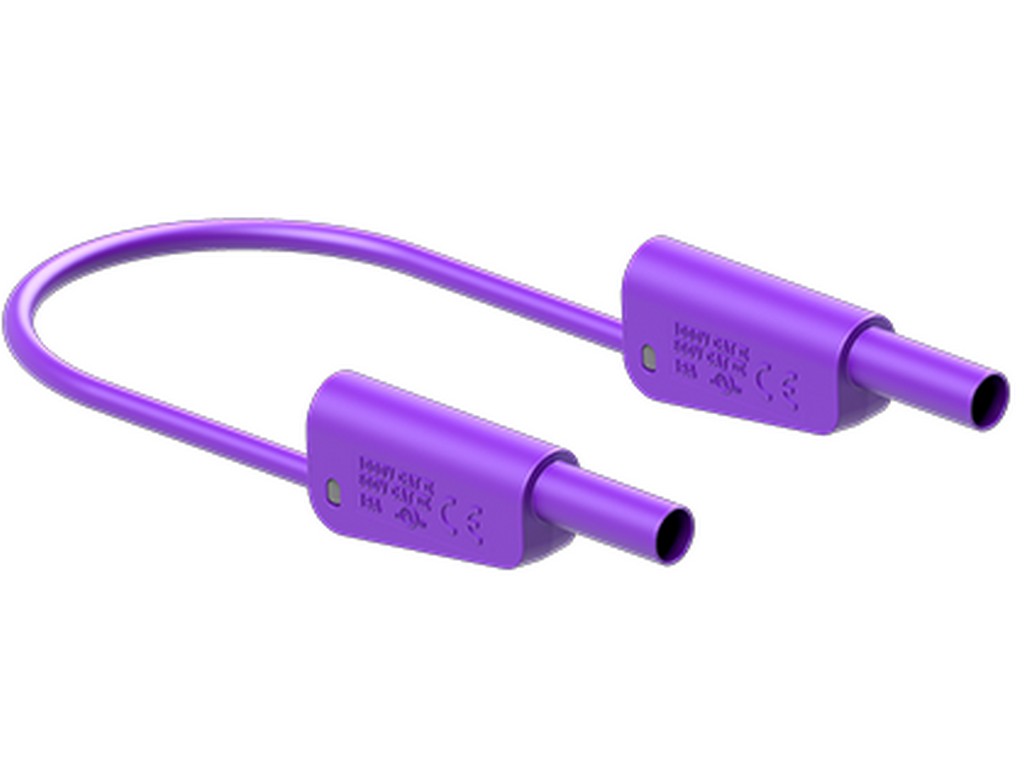

STAUBLI SLK-4N-F25
The SLK-4N-F25 is a highly flexible test lead with 4 mm MULTILAM connectors at both ends and a fixed insulation collar around the connectors. This is the type of lead used when connecting measuring equipment safely and quickly in a professional test environment.
The focus here is particularly on a solid and practical design. The stackable connector design allows multiple connections to be linked together, and the rigid insulation sleeves help provide better protection during connection. With a conductor cross-section of 2.5 mm², it is chosen for higher current requirements than the lighter variants in the series.
The SLK-4N-F25 is specified for 1000 V in CAT II and 600 V in CAT III, and it is rated for 32 A. This makes it relevant for measurement tasks where requirements are placed on voltage level, current capacity, and safe execution. The cable insulation is PVC, and the contact surfaces are nickel-plated with CuZn as the contact material.
The series is test accessory compliant with IEC EN 61010-031 and is approved with UL and CE. It is available in several lengths, allowing it to be adapted to the specific setup on the bench or in the panel.
Typical applications
Typically used for testing and measurement tasks involving 4 mm connections and requiring a flexible, safe test lead with higher current capacity.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2014-20026
- Product type: test lead with 4 mm stackable MULTILAM connectors
- Cable type: highly flexible
- Connector diameter: 4 mm
- Voltage rating: 1000 V CAT II / 600 V CAT III
- Current rating: 32 A
- Conductor cross-section: 2.5 mm²
- Cable insulation: PVC
- Contact material: CuZn
- Contact surface: nickel-plated
- Standard: IEC EN 61010-031
- Approvals: UL, CE
- Available cable lengths: 25, 50, 75, 100, 150, and 200 cm
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
