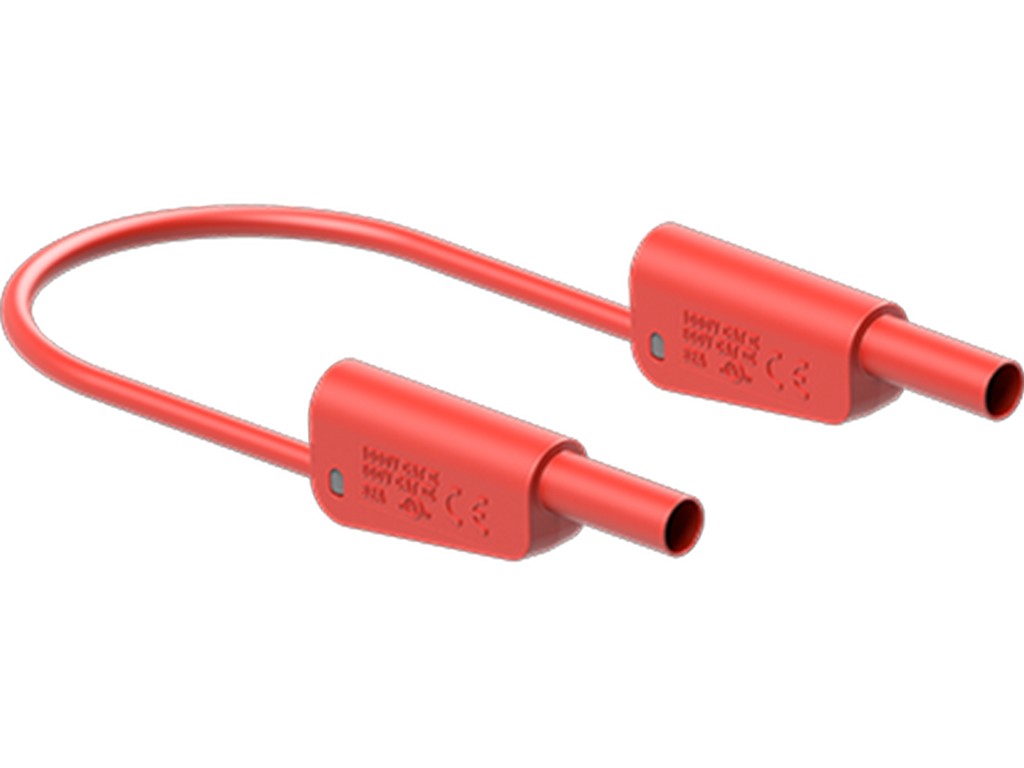

Test Lead: SLK-4N-F25 from STAUBLI
SLK-4N-F25 is a test lead from STAUBLI designed for flexible connection with stackable Ø 4 mm MULTILAM plugs and rigid insulating sleeves at both ends. The product description indicates the lead's main characteristics, electrical ratings, and material information as documented by the manufacturer.
Design and Materials
The SLK-4N-F25 features MULTILAM plugs with a diameter of 4 mm. Electrical contacts are nickel-plated (Ni) on CuZn base material. Wire insulation is made of PVC, and the conductor cross-section is 2.5 mm². Each end is equipped with a rigid insulating sleeve as specified in the manufacturer's specifications.
Electrical Ratings and Approvals
The stated ratings for the SLK-4N-F25 are 1000 V, CAT II, 32 A and 600 V, CAT III, 32 A. The test lead is classified as a test accessory according to IEC EN 61010-031 and has manufacturer-specified UL and CE approvals.
Available Lengths
The SLK-4N-F25 is available in the following lead lengths: 25, 50, 75, 100, 150, and 200 cm.
Documentation
For further technical details and official manufacturer information, please refer to the accompanying datasheet:
See datasheet from the manufacturer
Specifications
- Product Name: SLK-4N-F25
- Manufacturer: STAUBLI
- Plug Diameter: Ø 4 mm (MULTILAM)
- Ratings: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Electrical Contact: Nickel-plated (Ni) on CuZn
- Wire Insulation: PVC
- Conductor Cross-section: 2.5 mm²
- Available Lengths: 25; 50; 75; 100; 150; 200 cm
- Standard/Accessory: Test accessory acc. to IEC EN 61010-031
- Approvals: UL, CE
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
