STAUBLI 66.2016-20022

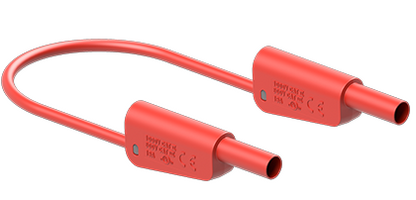

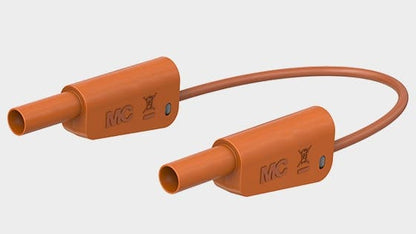

The STAUBLI 66.2016-20022 is a highly flexible test lead for measurement tasks where equipment needs to be connected safely and quickly with 4 mm plugs. It is fitted with stackable Ø 4 mm MULTILAM plugs at both ends, allowing it to be used in setups where multiple connections need to be stacked at the same point.
The cable has silicone insulation, making it suitable for work where a flexible and easy-to-handle wire set is desired on the test bench. The conductor area is 2.5 mm², and the contact parts are made of nickel-plated material with a CuZn (brass) base material.
In practice, this is the type of test lead chosen for professional measurement and test setups where both load capacity and safety are important. The cable is rated for 1000 V, CAT II, 32 A, and 600 V, CAT III, 32 A, and has UL and CE approvals.
Several lengths are available in the series, and this variant is in the 25 cm class. See the manufacturer's datasheet for the full overview: See manufacturer's datasheet
Typical applications
- Test and measurement setups with 4 mm connection
- Electronics production and laboratory work
- Switching and connection where stackable plugs are desired
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2016-20022
- Product: SLK-4N-S25 test lead
- Connector type: stackable Ø 4 mm MULTILAM plugs with rigid insulating sleeves at both ends
- Cable insulation: SIL (silicone)
- Conductor area: 2.5 mm²
- Rated values: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Contact material: nickel-plated
- Base material: CuZn (brass)
- Approvals: UL, CE
- Available lengths: 25, 50, 75, 100, 150, and 200 cm
