STAUBLI SLK-4N-S25

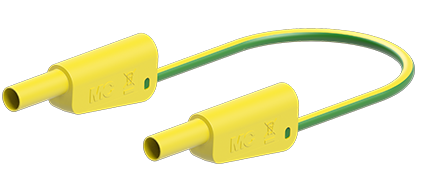

The STAUBLI SLK-4N-S25 is a highly flexible test lead featuring stackable Ø 4 mm MULTILAM connectors at both ends and a rigid insulating sleeve on each side. It is the type of lead used when measurement equipment needs to be connected safely and quickly in a professional test setup.
The stackable design allows for building upon connections without having to disconnect everything first. This is practical in test benches and laboratories where measurements and setups are frequently changed. At the same time, the rigid insulating sleeve provides extra protection around the connector, allowing for more controlled handling of the contact.
The SLK-4N-S25 is rated with a conductor cross-section of 2.5 mm² and is designed for 1000 V, CAT II, 32 A, as well as 600 V, CAT III, 32 A. This makes it relevant where higher voltages and currents are handled within the specified categories. The conductor insulation is made of silicone, which in practice provides a very flexible lead to work with.
Furthermore, it is specified according to IEC EN 61010-031 and is approved with UL and CE. The connector's contact material is CuZn with nickel plating.
See datasheet from the manufacturer
Typical Applications
- Test and measurement setups in electronics production
- Laboratories and service work where 4 mm measurement equipment is used
- Professional connections between instruments and measurement points
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2016-20020
- Model: SLK-4N-S25
- Ø 4 mm MULTILAM connector
- Stackable design
- Rigid insulating sleeve on both ends
- Conductor cross-section: 2.5 mm²
- Wire insulation: silicone
- Rating: 1000 V, CAT II, 32 A
- Rating: 600 V, CAT III, 32 A
- Contact material: CuZn
- Surface treatment: nickel
- Standard: IEC EN 61010-031
- Approvals: UL, CE
