STAUBLI 66.1041-10030

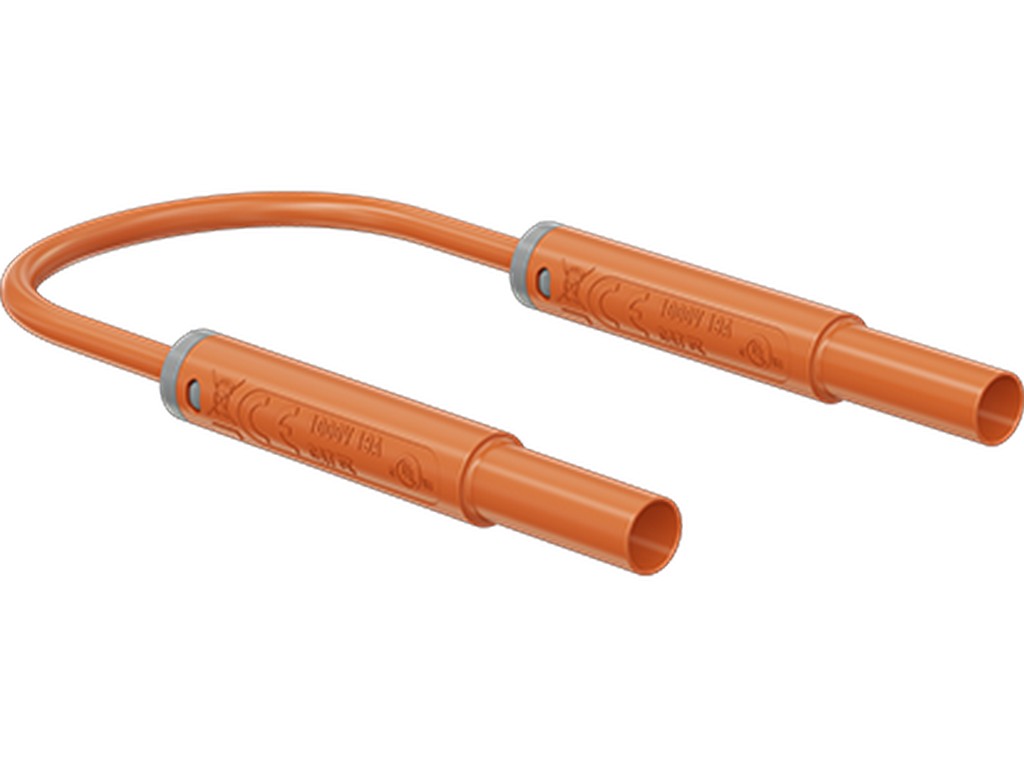

The STAUBLI 66.1041-10030 is a highly flexible test lead with Ø 4 mm MULTILAM plugs at both ends. It is used when a secure and stable connection is required for measuring equipment during testing and inspection of electrical installations and components.
The lead is constructed with rigid insulation sleeves at both ends, providing greater protection for the connection during use. The lead insulation itself is SIL, and the conductor cross-section is 1.0 mm². This makes the lead suitable for professional testing work, where both flexibility and a clear, robust construction are important.
It is rated for 1000 V, CAT IV, and 19 A, and it belongs to test accessories according to IEC EN 61010-031. Additionally, it is UL and CE approved. The contact material is CuZn with a Ni surface treatment, and lengths are available in 50, 100, 150, or 200 cm.
Typical Applications
The lead is typically used in test and measurement situations requiring 4 mm connections and a flexible connection between the instrument and the measurement point.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1041-10030
- Product: SAK-4N-S10
- Ø 4 mm MULTILAM plugs at both ends
- Rigid insulation sleeves at both ends
- Lead insulation: SIL
- Conductor cross-section: 1.0 mm²
- Rated voltage: 1000 V
- Category: CAT IV
- Rated current: 19 A
- Contact material: CuZn
- Surface treatment: Ni
- Lead lengths: 50, 100, 150 and 200 cm
- Test accessory according to IEC EN 61010-031
- Approvals: UL, CE
See datasheet from the manufacturer
