SAK-4N-F10-ILF Test Leads

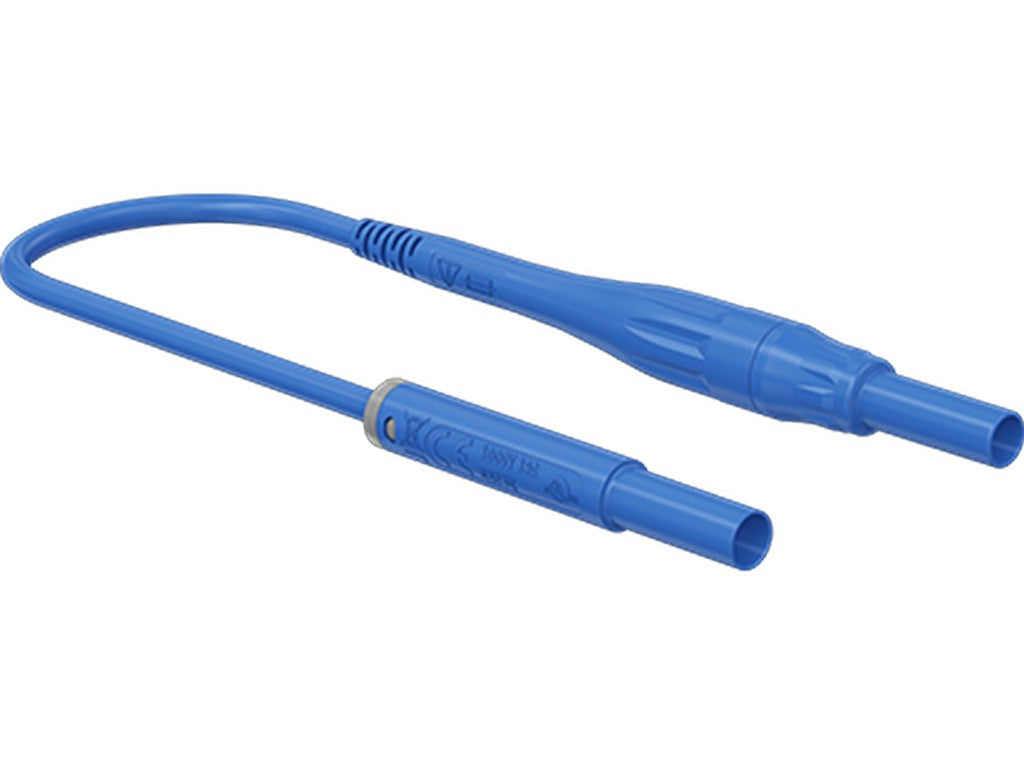

SAK-4N-F10-ILF are test leads with integrated high-breaking-capacity fuses from STAUBLI. The product is designed for fuse-protected measurements and is constructed with an in-line Ø 4 mm MULTILAM plug with a rigid insulating sleeve on both ends.Technical Overview
- Integrated high-breaking-capacity fuses in a two-part screw connection that can be easily disassembled for fuse replacement.
- Accepts high-breaking-capacity fuses measuring 6.3 x 32 mm (fuse not included).
- Allows the use of Ø 4 mm standard safety probes and test clips for fuse-protected measurements.
Documentation
The manufacturer's technical datasheet contains further details on construction and approvals.
See datasheet from the manufacturer
Typical Applications
- Use for fuse-protected measurements with Ø 4 mm standard probes and test clips, as specified in the manufacturer's material.
Specifications
- Product name: SAK-4N-F10-ILF
- Item number: 66.1046-*
- Rated values: 1000 V, CAT IV (according to IEC/EN 61010-031)
- Diameter plug system: 4 mm
- Lead lengths: 100; 150; 200 cm
- Lead insulation: PVC
- Lead cross-sectional area: 1.0 mm²
- Fuse size accepted: 6.3 x 32 mm (fuse not supplied)
- Electrical contact surface treatment: Ni
- Electrical contact base material: CuZn
- Test accessory according to: IEC EN 61010-031
- Approvals: UL, CE
