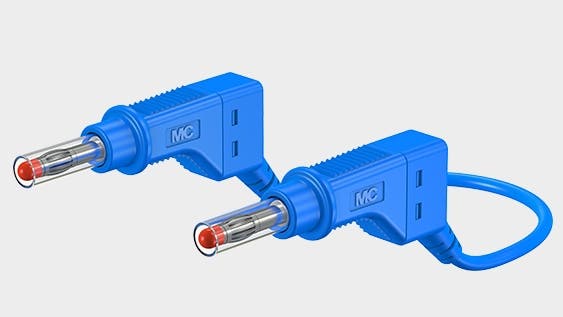

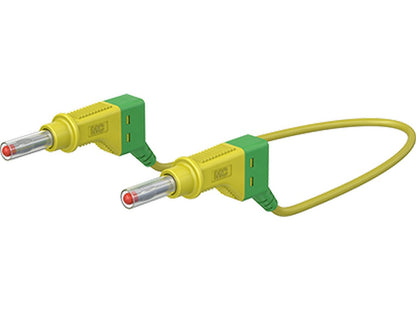

Test accessory: Stäubli XZG425/SIL (66.9408-20020)
This test accessory from Stäubli is part of the XZG425/SIL series and is supplied under item number 66.9408-*. The product features highly flexible SIL (silicone) insulation material and is intended as a test accessory in accordance with IEC EN 61010-031.
Description
- Stackable Ø 4 mm MULTILAM plugs on both ends with protective collar and retractable sleeve to prevent accidental contact.
- Supplied with highly flexible silicone (SIL) for wire insulation.
- Surface treatment of electrical contact: Ni; contact base material: CuZn.
- Rated values: 600 V, CAT II, 32 A; conductor cross-section 2.5 mm².
Documentation
For technical details and official documentation, please refer to the manufacturer's datasheet.
See datasheet from manufacturer
Typical applications
The product is especially suitable for connecting electrical devices that are not yet equipped with safety plugs. This application is directly stated in the manufacturer's product information for the XZG425/SIL.
Specifications
- Product series: XZG425/SIL (item number 66.9408-*)
- Plug system diameter: 4 mm
- Rated values: 600 V, CAT II, 32 A
- Conductor cross-section: 2.5 mm²
- Wire insulation: SIL (silicone)
- Wire lengths (available): 050 cm; 100 cm; 150 cm; 200 cm
- Contact surface treatment: Ni
- Contact base material: CuZn
- Designated as test accessory in accordance with: IEC EN 61010-031
- User information: I 074
- Approvals: CE
- Datasheet date: 02.2022
The content has been generated using AI – we reserve the right to correct errors.
Contact HIN for further information about the product.
