Product Overview

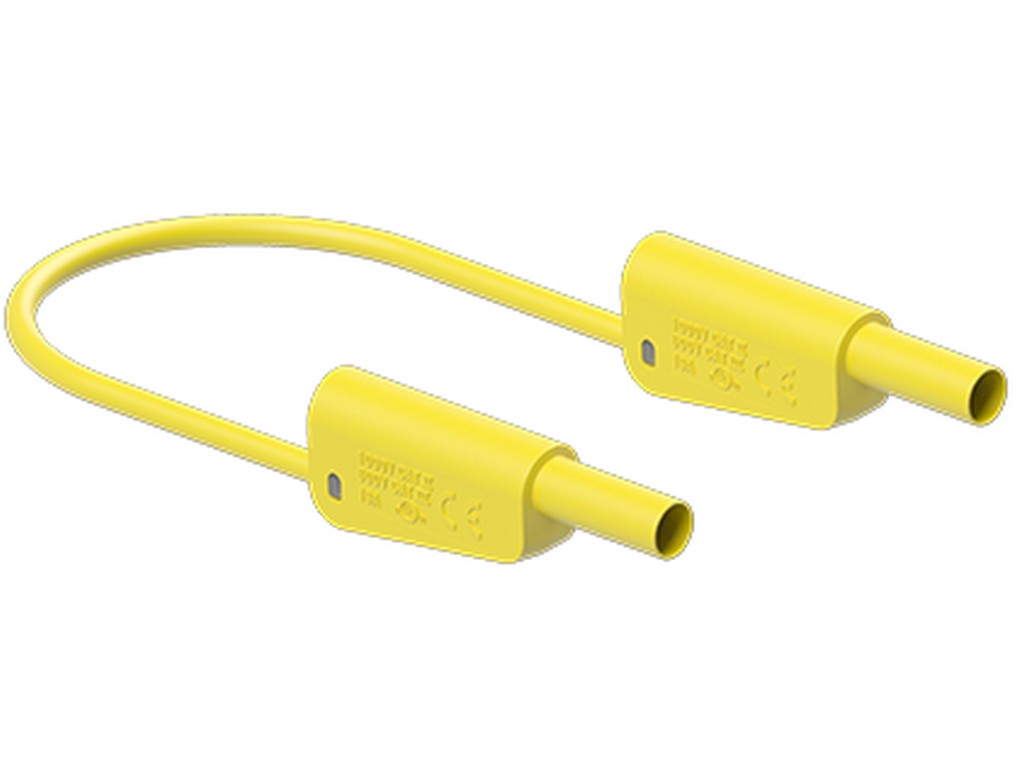

This test lead from STAUBLI, SLK-4N-F10, is a flexible test lead with stackable Ø 4 mm MULTILAM plugs and fixed insulating sleeves on both ends. The product is specified and documented in the manufacturer's technical datasheets and complies with the stated standards and approvals as specified by STAUBLI.Design and Materials
The SLK-4N-F10 features an electrical contact surface with nickel plating (Ni) and a contact material with a CuZn base. The conductor's cross-sectional area is 1.0 mm² and is insulated with PVC. The plugs are of the MULTILAM type with a diameter of 4 mm and are designed as stackable plugs.Documentation
Refer to the manufacturer's specifications for complete technical documentation: View datasheet from manufacturerSources
- Manufacturer's datasheet: STAUBLI, item number 66.2010-*
Specifications
- Product Name: SLK-4N-F10
- Plug system diameter: 4 mm (MULTILAM)
- Rated values: 1000 V, CAT II, 19 A / 600 V, CAT III, 19 A
- Electrical contact surface: Nickel (Ni)
- Base material electrical contact: CuZn
- Conductor cross-section: 1.0 mm²
- Cable insulation: PVC
- Available cable lengths: 025 (25 cm), 050, 075, 100, 150, 200 cm
- Test accessory according to: IEC EN 61010-031
- Approvals: UL, CE
