Product Overview
Description

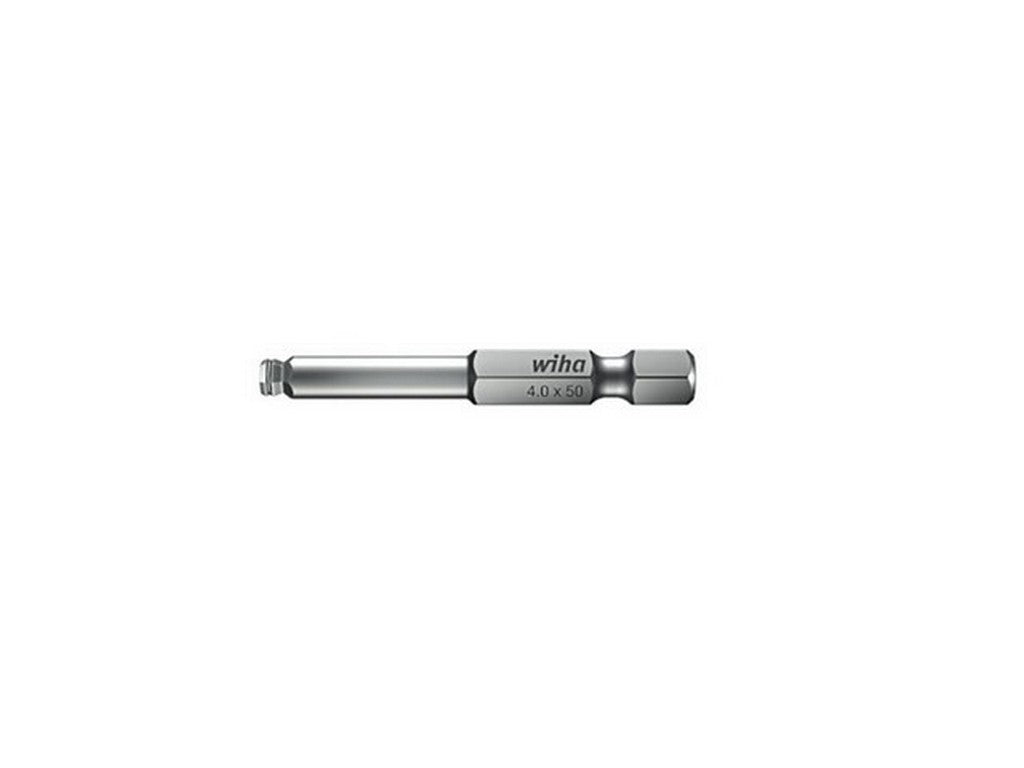

Bit Professional 50 mm (item number 25739) is a hex ball bit with MagicRing® and 1/4" E6.3 drive. The product is stated by the manufacturer WIHA to be a 50 mm long bit with a ball end, made of chrome-vanadium steel, through-hardened.- Hex ball end (ball head) allows for screwdriving at an angle (up to 25°), as stated by the manufacturer.
- MagicRing® is made of spring steel and, according to the manufacturer, holds standard screws in place in any position.
Technical Context
Bit Professional 50 mm is listed with the standard drive DIN 3126 / ISO 1173, form E 6.3. The stated dimensions of the product are 50 x 7 x 6 mm (LxWxT). The material specification on the manufacturer's site is high-quality chrome-vanadium steel, through-hardened.
Typical Applications
The manufacturer's description indicates use in situations where screws need to be lifted out of drilling positions or guided into drilling positions, especially in hard-to-reach places. The bit is used with form E 6.3 drive according to DIN 3126 / ISO 1173.
Assembly and Variants
The variant shown with item number 25739 is specified as a 3.0 mm internal hexagon and a total length of 50 mm. WIHA states additional variants (4.0 mm, 5.0 mm and 6.0 mm) as separate order numbers on the manufacturer's product page.
Specifications
- Product name: Bit Professional 50 mm (item number 25739).
- Manufacturer: WIHA.
- Internal hexagon: 3.0 mm (referred to item number 25739 on the manufacturer's site).
- Total length: 50 mm.
- Dimensions (L x W x T): 50 x 7 x 6 mm (stated by the manufacturer).
- Drive / Applied standard: DIN 3126, ISO 1173, Form E 6.3.
- Material: Chrome-vanadium steel, through-hardened.
- MagicRing®: Made of spring steel (described by the manufacturer) for holding standard screws.
- Ball head: Enables screwdriving at an angle of up to 25° (stated by the manufacturer).
- Order number / manufacturer article: 25739.
The content is generated using AI – we reserve the right for errors.
