Fluke VPS421-R (5014264) – High-Voltage Voltage Probe Set
The Fluke VPS421-R (5014264) is a set of high-voltage voltage probes for use with Fluke oscilloscopes and analyzers. The product is specified as a 100:1 attenuation probe with a stated bandwidth of 150 MHz. The probes use a safety-shrouded 4 mm banana plug probe tip that is compatible with crocodile clips/alligator clips.
Technical Overview
- Attenuation: 100:1.
- Bandwidth: 150 MHz.
- Probe tip: safety-shrouded 4 mm banana plug, compatible with alligator clips.
- Safety rating: CAT III 1000 V and CAT IV 600 V.
- Probe-tip to reference-lead working voltage: 2000 V in CAT III environment.
Documentation
Further product information and manufacturer's text documentation can be found on Fluke's product page: See manufacturer's product page.
Typical Applications
The Fluke VPS421-R (5014264) is intended for use with oscilloscopes and analyzers, including the ScopeMeter 190 Series and MDA-550 Motor Drive Analyzers, as indicated by the manufacturer. The product's attenuation ratio and bandwidth make it suitable for measuring high voltage signals when galvanic isolation and measurement attenuation are required.

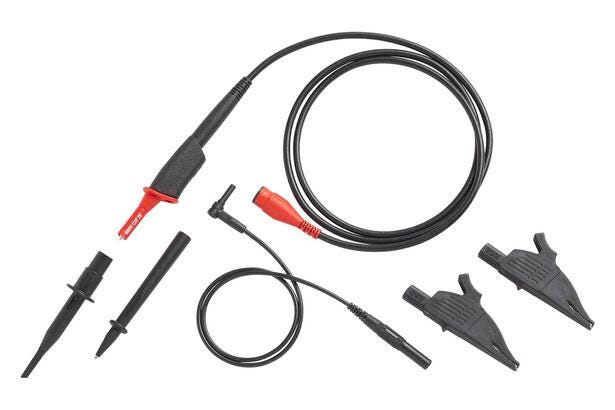

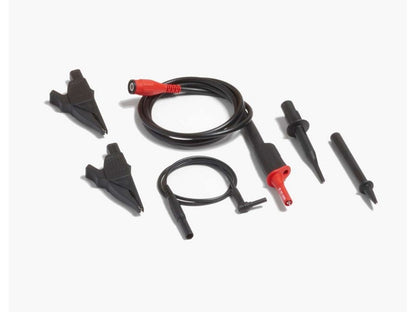

Contents of Set
- Voltage probe (probe unit).
- Hook clip.
- Reference lead with 4 mm banana plug.
- Two alligator clips.
- Test probe.
Specifications
- Product name: Fluke VPS421-R (5014264).
- Attenuation: 100:1.
- Bandwidth: 150 MHz.
- Safety-shrouded 4 mm banana plug probe tip (compatible with alligator clips).
- Safety rating: CAT III 1000 V; CAT IV 600 V.
- Probe-tip to reference-lead working voltage: 2000 V (in CAT III).
- Supplied with hook clip, reference lead, two alligator clips, and test probe.
