Product Overview

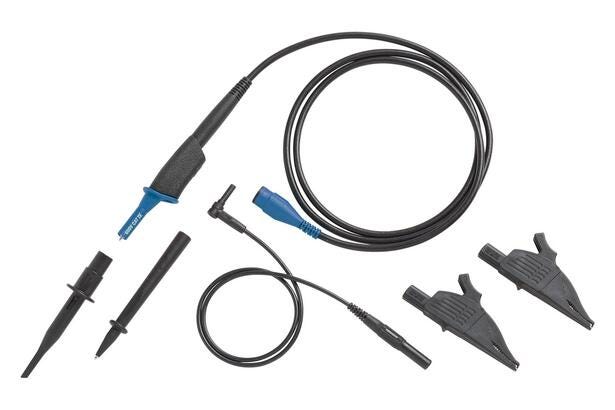

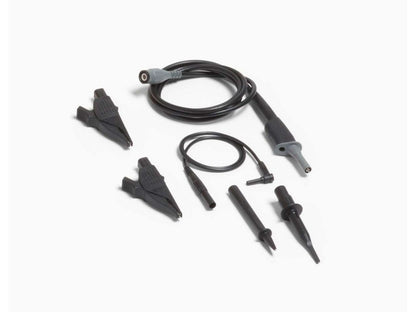

This probe set from Fluke is a Fluke VPS421-G (VPS421 series voltage probe set) designed as a voltage probe with 100:1 attenuation. The product delivers measurement characteristics specified by the manufacturer and is intended for use with specified Fluke instruments.
Features and Construction
- Safety-shrouded 4 mm probe tip.
- 100:1 attenuation.
- 150 MHz bandwidth.
- Input impedance: 100 MΩ.
- Input capacitance: 5.2 pF.
- Cable length: 1.2 m (3.9 ft).
Typical Applications
Used with the following Fluke instruments, as specified in the manufacturer's material:
- Fluke ScopeMeter 190 series.
- MDA-500 series (mentioned in manufacturer information).
Safety and Voltage Limits
In a CAT III rated situation, the following working voltages are stated in the manufacturer's text:
- Probe tip to reference lead: working voltage 2000 V (CAT III).
- Probe tip to earth ground: working voltage 1000 V (CAT III).
Specifications
- Product name: Fluke VPS421-G.
- Series: VPS421 series voltage probe set.
- Color: grey.
- Probe tip: safety-shrouded 4 mm.
- Attenuation: 100:1.
- Bandwidth: 150 MHz.
- Input impedance: 100 MΩ.
- Input capacitance: 5.2 pF.
- Cable length: 1.2 m (3.9 ft).
- Working voltage (CAT III): probe tip to reference lead 2000 V; probe tip to earth ground 1000 V.
- Manufacturer: FLUKE.
- Manufacturer's part number: 5014273.
- SKU specified in supplier text: 5014264.
