Hand Crimping Tool — EAP240

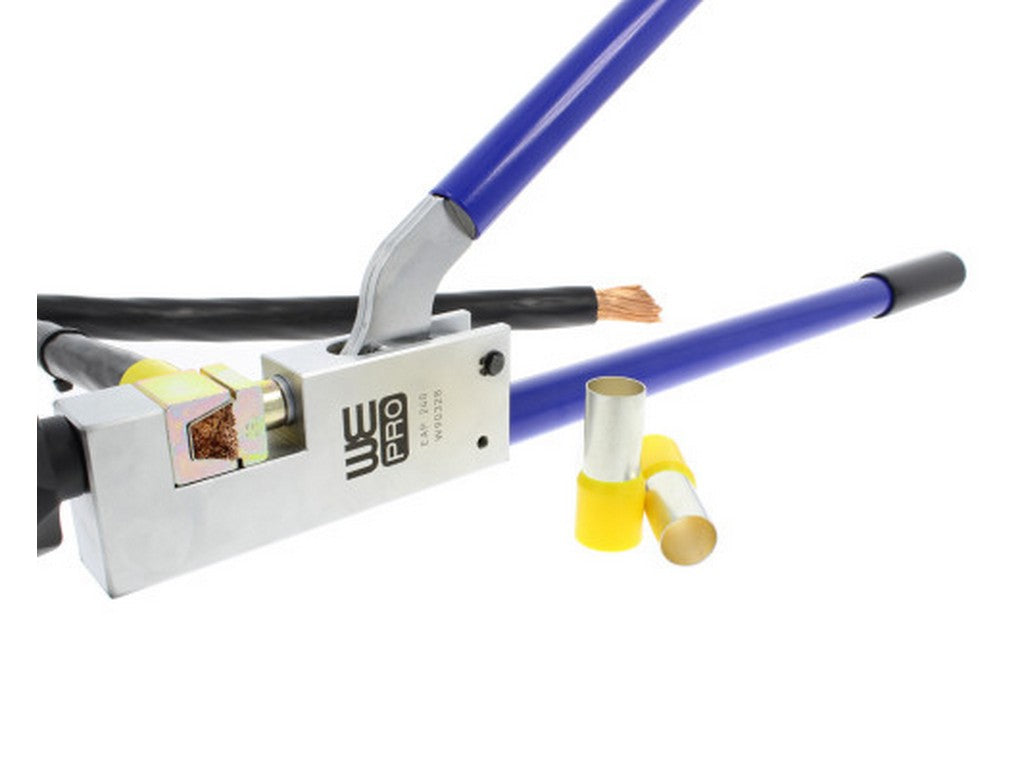

The EAP240 from EISENACHER is a hand-operated crimping tool designed for wire end ferrules with cross-sections from 25 mm² to 240 mm². The tool's primary function is the mechanical crimping of ferrules using a pulley/press mechanism, which the manufacturer states is maintenance-free and power-saving.Function and Construction
The EAP240 is described by the manufacturer as having a mechanical, power-saving drive mechanism and optimal force and lever translation. The crimping principle is stated as trapezoidal crimping (Trapezpressung), and the press jaws are guided in parallel to ensure uniform crimping of the ferrules. The tool is supplied with the option for quick replacement of insert dies, allowing adaptation to different ferrule configurations.
Interchangeable Inserts
- W903280 – 25 & 35 mm²
- W903282 – 50 mm²
- W903283 – 70 mm²
- W903284 – 95 mm²
- W903285 – 120 mm²
- W903286 – 150 mm²
- W903287 – 185 mm²
- W903288 – 240 mm²
Application Notes
The manufacturer states that the EAP240 is designed without requiring continuous maintenance. Interchangeable inserts allow for covering a wide range of wire end ferrule cross-sections with a single basic body. The description also states that the tool has a robust construction and simple operation.
Specifications
- Product Name: EAP240
- Manufacturer: EISENACHER
- Product Category: Hand Crimping Tool (Handcrimpzange)
- Application: Wire end ferrules 25 mm² – 240 mm²
- Maintenance: Manufacturer states maintenance-free
- Drive System: Mechanical, power-saving drive mechanism (as stated by manufacturer)
- Crimping Principle: Trapezoidal crimping (Trapezpressung)
- Press Guidance: Parallel-guided press jaws
- Interchangeable Insert Numbers: W903280, W903282, W903283, W903284, W903285, W903286, W903287, W903288
